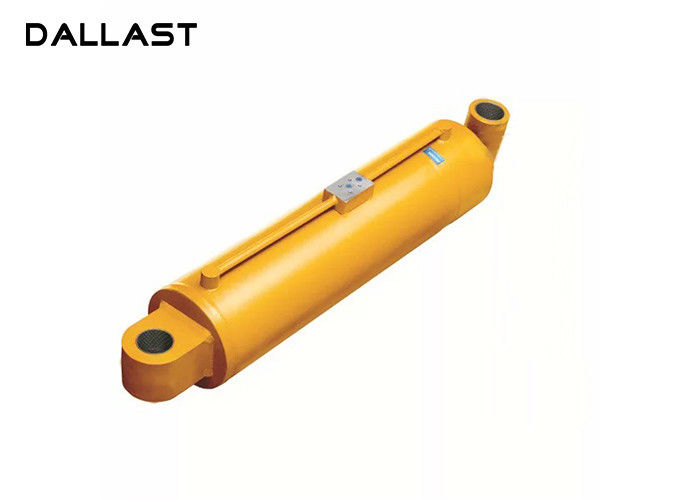

Dual Action Double Acting Hydraulic Ram 2 Way Chrome Crane with Piston

Dual Action Double Acting Hydraulic Ram 2 Way Chrome Crane with Piston

    • Dual Action Double Acting Hydraulic Ram 2 Way Chrome Crane  with Piston
    • Dual Action Double Acting Hydraulic Ram 2 Way Chrome Crane  with Piston
    • Dual Action Double Acting Hydraulic Ram 2 Way Chrome Crane  with Piston
  • Dual Action Double Acting Hydraulic Ram 2 Way Chrome Crane  with Piston

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Product Name: Hydraulic Oil Cylinder Model: Telescopic / Telescoping Hydraulic Cylinder
    Application: Crane,Forklift,Construction Machinery Mounting Type: Double 2 Earring
    Bore Dia: 40mm-300mm Rod Dia: 16mm-200mm
    Lift Capacity: 3.2T,5T,6.3T,8T,12T,20T Hydraulic Pressure: 20-30Mpa
    High Light:

    double acting ram cylinder

    ,

    dual action hydraulic ram

    Dual Action 2 Way Chrome Crane Hydraulic Lift Arm Cylinder with Piston



    Cylinder Advantages:

    • Material:Alloy steel,Carbon steel,Stainless steel,27SiMn
    • Rod :Chrome plated and quenched.Has good mechanical properties, long service life
    • Cylinder:Honing machining /boring /rolling
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
    • Experience in export North America, Australia, Asia, Middle East, Africa
    • We are professional manufacturer and supplier in hydraulic cylinder.
    • We do accept OEM manufacturing. We will provide competitive price and make the exact cylinder according to your specification and drawing.
    • We have professional R&D team with rich design experience.
    • We also establish strict but scientific product testing system so that products have perfect performance.
    • One year warranty and long time track service is offered to solve any problems you meet after sale.

         Cross manufactures a large range of custom hydraulic cylinders for a wide diversity of applications and markets:Heavy duty mining, metallurgy, forging, casting, engineering transportation, hydraulic machinery, food processing machinery, machine tools, civil engineering, construction machinery, chemical machinery, medical machinery, injection molding machinery, automated assembly line, Light industry machinery,agriculture,material handling,mobile and utility,airport ground equipment,solid waste handling,drilling

    ,marine,forestry,military contracts.



          We are giving the best quality Hydraulic Cylinder to our various clients across the world. To manufacture the hydraulic cylinder we are maintaining high level infrastructure without any compromise. We have different kinds of Hydraulic Cylinders like Hydraulic Cylinder for Automotive, Hydraulic Cylinder for Heavy Machinery, Hydraulic Cylinder for Earthmoving Equipments, Telescopic Hydraulic Cylinder, Hydraulic Cylinder for Cement Plants and many more items with effective time delivery to our customers.



    We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:

    • Bore diameter;

    • Rod diameter;

    • Stroke;

    • Working pressure;

    • Front and back end mount type;

    • Using frequency;

    • Work Environment;

    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.

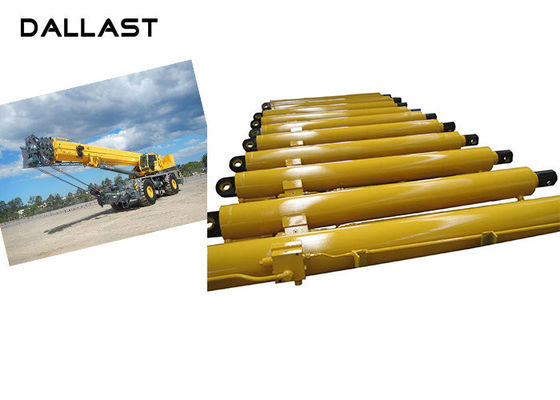

    Hydraulic cylinder for crane series are match wtih CAMC. Welcome to custom-made.
    Cylinder Name Model

    Pressure

    (Mpa)

    Cylinder
    diameter(mm)
    Rod diameter
    (mm)
    Stroke
    (mm)
    12T Front horizontal cylinder 50/35-1700 20 50 35 1700
    12T Horizontal back lever 50/35-1400 20 50 35 1400
    12T Streight telescopic boom cylinder 1 80/63-2940 25 80 63 2940
    12T Streight aim telescopic cylinder 2 80/55-2820 25 80 55 2820
    8T Folding boom vertical cylinder 100/75-520 30 100 75 520
    8T Folding boom luffing cylinder 170/110-610 30 170 110 610
    8T Folding boom luffing cylinder 2 170/110-677 30 170 110 677
    8T Folding boom telescopic cylinder 85/60-1770 30 85 60 1770
    8T Folding boom horizontal cylinder 50/30-1650 25 50 30 1650
    12T rear verticle cylinder 100/75-454 25 100 75 454
    12T Front lever cylinder 100/75-610 25 100 75 610
    12T Streight arm luffing cylinder 160/110-692 25 160 110 692
    20T Rear horizontal cylinder 50/35-1700 25 50 35 1700
    12T Streight telescopic boom cylinder 80/55-2820 25 80 55 2820
    12T Streight telescopic boom cylinder 80/63-2940 25 80 63 2940
    20T Rear horizontal cylinder 100/70-449 26 100 70 449
    12T Left front streight cylinder 110/90-620 25 110 90 620
    12T Front horizontal cylinder 50/35-1700   50 35 1700
    20T Right front horizontal cylinder 115/95-490 26 115 95 490
    5T Streight arm luffing cylinder 150/110-608 26 150 110 608
    5T Streight arm horizontal cylinder 50/30-1410 20 50 30 1410
    5T Streight arm landing leg cylinder 80/63-590 25 80 63 590
    5T Streight arm telescopic cylinder 80/60-2400 21 80 60 2400
    3.2T Luffing cylinder 125/70-537 20 125 70 537
    3.2T Landing let cylinder 80/63-550 25 80 63 550
    3.2T Telescopic combined cylinders 55/45-2100   55 45 2100
    6.3T Streight arm luffing cylinder 160/125-610 26 160 125 610
    6.3T Streight arm telescopic cylinder 90/70-2350 21 90 70 2350

    Program before delivery:
    1. Trial Operation Test
    2. Start-up Pressure Test
    3. Pressure-Tight Test
    4. Leak Test
    5. Full Stroke Test
    6. Buffer Test
    7. Testing the Effect of Limit
    8. Load Efficiency Test
    9. Reliability Test

    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.



    Dual Action Double Acting Hydraulic Ram 2 Way Chrome Crane  with Piston

    Dual Action Double Acting Hydraulic Ram 2 Way Chrome Crane  with Piston
