| Place of Origin: | China |
| Brand Name: | DALLAST or on request |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | customied |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 20-30 work days or on request |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Pressure: | 10-35MPa | Temperature: | Normal Temperature |
|---|---|---|---|
| Rod: | Stainless Steel, 27SIMN, 20# Or Customized | Stroke: | Custom |
| Mounting: | Custom Designs | Application: | Small Truck Cylinder |
| High Light: | single acting telescopic cylinder,industrial hydraulic cylinders |
||

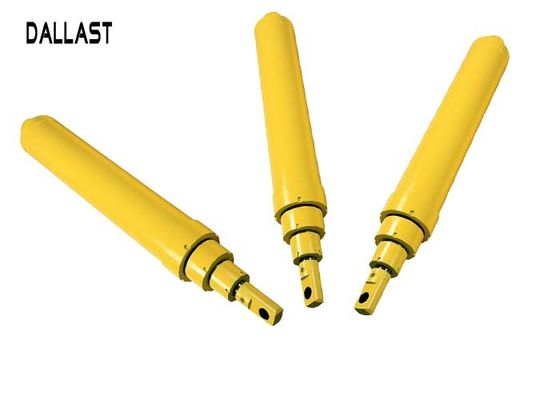

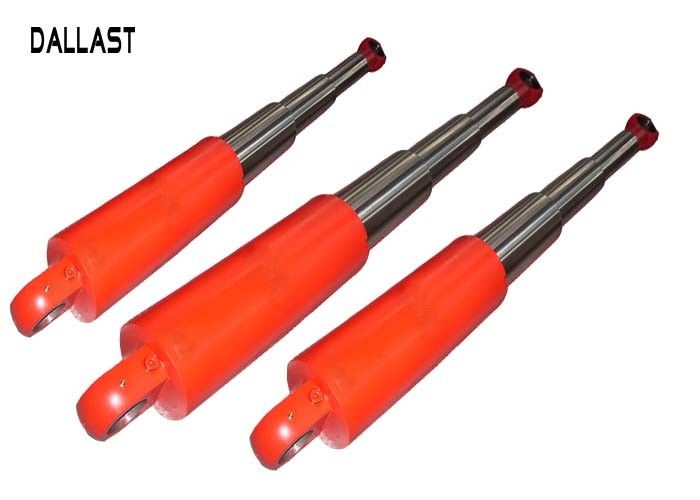

Hydraulic Ram Single Acting Multi Stage Telescoping 6 Inch Bore Hydraulic Cylinder
Application:
The single acting hydraulic cylinders produced in DALLAST company are mainly used on:
1. heavy vehicle;
2.Tipping trailer;
3.dump truck;
4.Side tipping vehicle;
5.Compressed equipment,etc.
Cylinder tube:
The hydraulic cylinder tube is the main part of the hydraulic cylinder.The inner hole of the hydraulic cylinder tube usually precision processed by boring,reaming,rolling or honing.By these process can ensure the piston,sealing elements and the support elements move smoothly,then ensure the sealing effect and reduce the abrasion.The hydraulic cylinder tube will bear big pressure,so need high strength and stiffness.
Advantages:
- Many mounting styles. Several bore sizes and in varying strokes. Cylinders are designed for naomal or high operating pressures. Many of these sizes are available for immediate delivery.
- Special material with high quality, high-precision, better anti-bending ability.
- New model guide ring combined with lubricating material,guarantee smooth lifting.
- Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
- Maintenance-free support, longer working life.
- Integrated design, easy to maintain.
-100% tested, guarantee high quality.
- Warranty: We offer 12 months warranty.
Features:
1). Bore of Hydraulic Cylinder: 40mm-1000mm(1 1/2 inch-40 inch)
2). Diameter of piston rod: 12mm-500mm(1/2 inch-20 inch)
3). Stroke of Hydraulic cylinder: Max 15000mm.
4). Working pressure of hydraulic cylinder: 10Mpa-35Mpa
5). Brand of Seal kits:PARKER(USA) HALLITE(ENGLAND) NOK(JAPA)
7). Materials of Piston Rod:35# steel,Stainless steel,45# steel etc
8). Technical Treatment of Piston Rod:Quenched and tempered.chromed
9). Painting: Follow with customer requirements or 3-coat marine painting.
Horizontal power hone: 33-inch (83.82 centimeters) diameter by 30-foot (9.144 meters) long
Cylinder assembly machine: 30-foot (9.144 meters)
Advanced seal options: low, medium and high pressures
Certified Inertia Welding on Rods 1” to 8.5” in diameter for single-piece manufacturing that adds strength and durability
Installation method:
The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
Tips:
We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:
| A. The drawing details are as follows. | |
| Bore size |
Stroke length
|
| Rod diameter |
Mounting type
|
| Mounting length |
Paint color requirement
|
|
B. The product application description details |
|
| 1. Type of machine(loader, steer loader, excavator, and etc.) | |
|
2. Type of function(hoist, swing, steering, and etc.) 3. Type of structure(piston, telescopic) |
|
| 4. Single or double acting | |
| 5. Operating pressure | |
