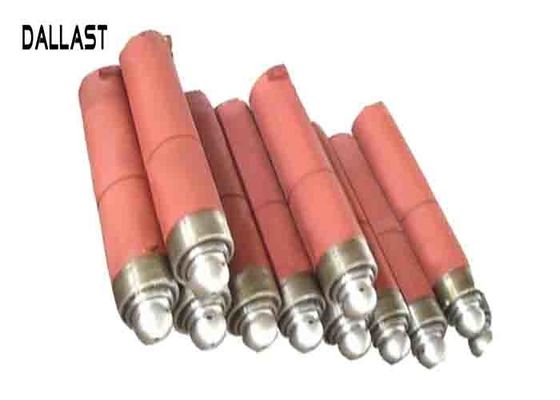

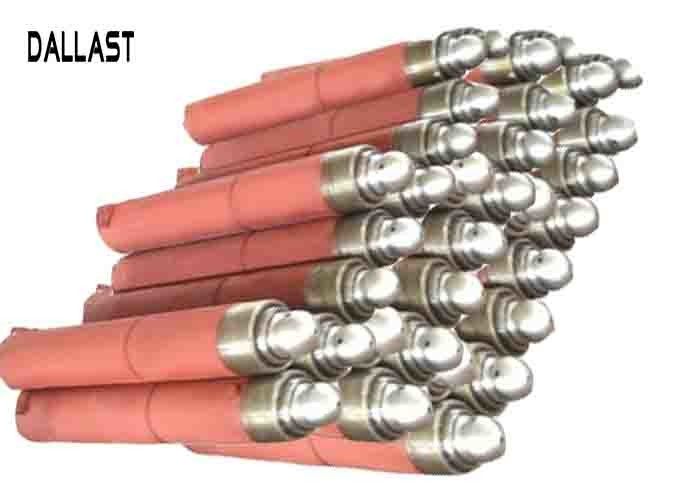

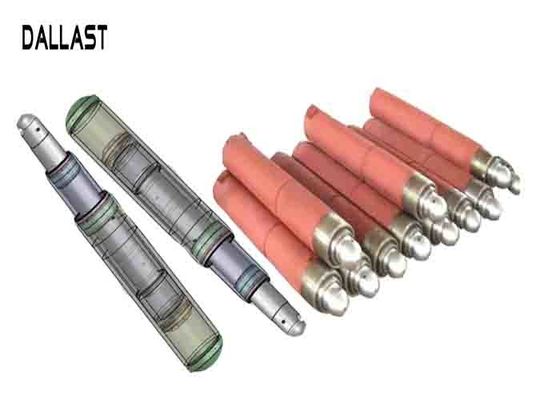

Telescoping 3 Stages Chrome Single Acting Hydraulic Ram Low Pressure Stroke 500 mm

Telescoping 3 Stages Chrome Single Acting Hydraulic Ram Low Pressure Stroke 500 mm

    • Telescoping 3 Stages Chrome Single Acting Hydraulic Ram Low Pressure Stroke 500 mm
    • Telescoping 3 Stages Chrome Single Acting Hydraulic Ram Low Pressure Stroke 500 mm
    • Telescoping 3 Stages Chrome Single Acting Hydraulic Ram Low Pressure Stroke 500 mm
  • Telescoping 3 Stages Chrome Single Acting Hydraulic Ram Low Pressure Stroke 500 mm

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Power: Hydraulic Pressure Direction: Single Acting
    Pressure: 50-350 Bar Temperature: Normal Temperature
    Seal Kit: Nok, Hallite, Parker Etc HS Code: 8412210000
    High Light:

    single acting hydraulic cylinder

    ,

    single acting telescopic cylinder

    Low Pressure Stroke 500 mm Single Acting Hydraulic Ram Telescoping 3 Stages Chrome



    Introduction:

             When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement. Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.



              Once the work is completed, the oil is depressurized and returned to the fluid reservoir. The piston returns to the starting position by an external force such as gravity or a compressed spring.





    Application A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.
    Design feature It is a simple, inexpensive design
    Direction A single action hydraulic cylinder is pressurized for motion in only one direction.
    Piston rod All our piston rods are hard protection coated, such as hard chrome plate, or if required, can be coated with an alternative treatment more suitable to the application.



    Advantages:

    Improved quality system

    Doubled manufacturing and warehousing area

    High quality products

    Very competitive price

    Great Service


    Quality control:
    a. Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation.
    b. Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
    c. Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
    nuts backing off.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.



    If you are interested in our products, contact us and send us the drawings:

    The drawing details are as follows.

    A

    1. Bore size

    2. Stroke length

    3. Rod diameter

    4. Mounting type

    5. Mounting length

    6. Paint color requirement



    B.The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting

    5. Operating pressure



    Telescoping 3 Stages Chrome Single Acting Hydraulic Ram Low Pressure Stroke 500 mm

    Telescoping 3 Stages Chrome Single Acting Hydraulic Ram Low Pressure Stroke 500 mm

    Telescoping 3 Stages Chrome Single Acting Hydraulic Ram Low Pressure Stroke 500 mm
