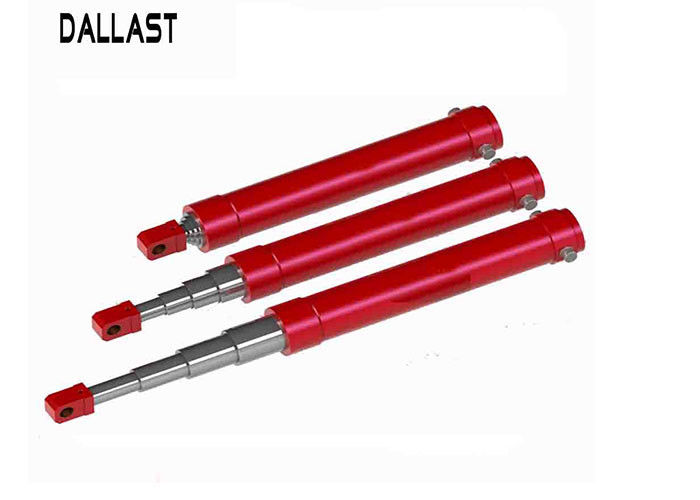

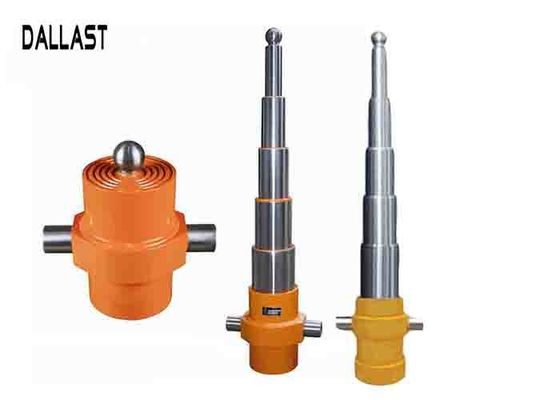

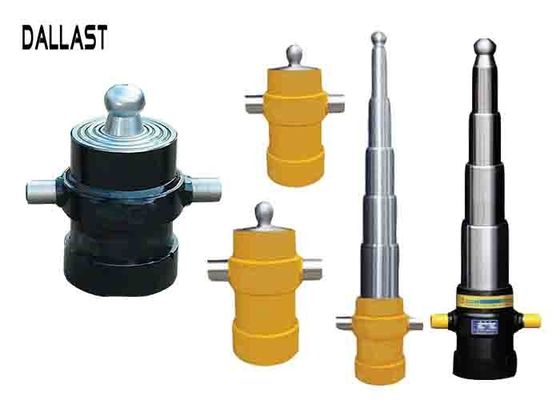

5 Stages Single Acting Hydraulic Ram Vertical Horizontal Telescoping for Truck

5 Stages Single Acting Hydraulic Ram Vertical Horizontal Telescoping for Truck

    • 5 Stages Single Acting Hydraulic Ram Vertical Horizontal Telescoping  for Truck
    • 5 Stages Single Acting Hydraulic Ram Vertical Horizontal Telescoping  for Truck
    • 5 Stages Single Acting Hydraulic Ram Vertical Horizontal Telescoping  for Truck
  • 5 Stages Single Acting Hydraulic Ram Vertical Horizontal Telescoping  for Truck

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Power: Hydraulic Pressure Direction: Single Acting
    Pressure: 16-35MPa Temperature: Normal Or High Temperature
    HS Code: 8412210000 Bore Size: Custom

    Vertical Horizontal Telescoping 3 4 5 Stages Single Acting Hydraulic Ram for Truck



    Benefits:

             Single-acting cylinders transfer force and motion in one direction only. Acts on the piston to push the piston rod out. Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation.Snap on glass filled bearings that absorb contaminants without damaging cylinder walls. Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing nuts backing off.



             When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement.



              Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.



              All cylinder products carry an 12 months warranty.



    Piston rod:

    All our piston rods are hard protection coated, such as hard chrome plate, or if required, can be coated with an alternative treatment more suitable to the application.



    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters.



                                             3 4 5 Stages Single Acting Hydraulic Ram

    Application: dump trailers, aerial trucks, lift tables and the list goes on...



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details


    Features:
    Structure Single acting telescopic cylinders
    Stage 3~5 stage cylinder
    Max inner tube 170mm,180mm,195mm,200mm,210mm,etc
    Mounting distance 325mm/345mm/425mm or as customers’ requirements
    Working Pressure 16Mpa-50Mpa
    Stroke 750mm-7200mm
    Tipping Weight 6-60 Ton
    Seal Type Parker,NOK, BUSAK or as customer's requirement
    Piston Rod Chrome or nickel plated,ground & polished piston rod
    Tube High tensile cold drawn tube, precision honed for extended seal life





    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.



    5 Stages Single Acting Hydraulic Ram Vertical Horizontal Telescoping  for Truck



    5 Stages Single Acting Hydraulic Ram Vertical Horizontal Telescoping  for Truck
