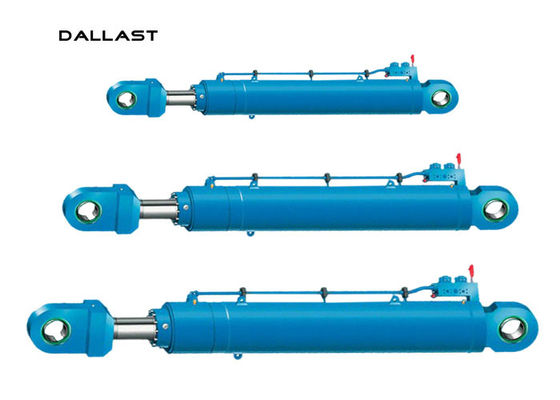

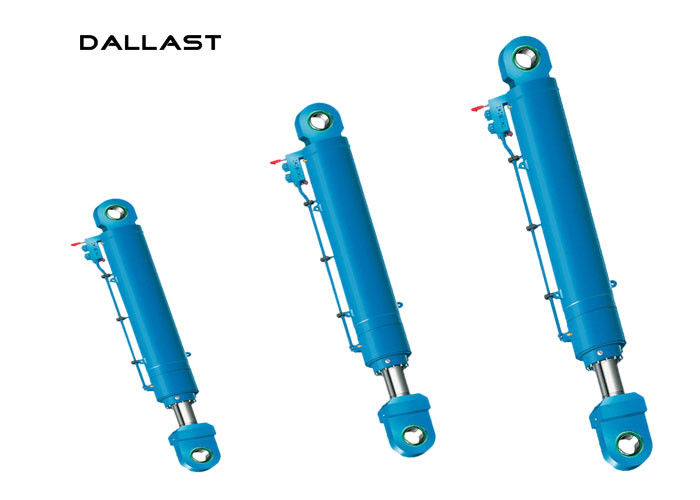

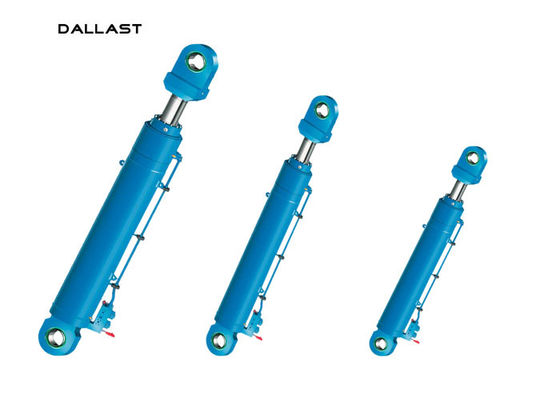

Steel Agricultural Farm Hydraulic Cylinders Double Acting With Piston

Steel Agricultural Farm Hydraulic Cylinders Double Acting With Piston

    • Steel Agricultural Farm Hydraulic Cylinders Double Acting With Piston
    • Steel Agricultural Farm Hydraulic Cylinders Double Acting With Piston
    • Steel Agricultural Farm Hydraulic Cylinders Double Acting With Piston
  • Steel Agricultural Farm Hydraulic Cylinders Double Acting With Piston

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Specification: Steel Adjusted Form: Regulated Type
    Place Of Origin: Shandong China Usage: Farm Agriculture
    Structure: Cushioned Cylinder Service: After-sale Service
    High Light:

    agricultural hydraulic rams

    ,

    agricultural hydraulic cylinder

    Double Acting With Piston Agricultural Farm Hydraulic Cylinder Manufacturers


    Model Type piston type
    Certificate ISO9001&TS16949:2009
    Body Material Steel
    Shaft Diameter Requirements
    Pressure 5MPa~36MPa
    Total Stroke Requirements
    Surface Treatment Chrome Plating
    Working type double acting
    Application Agriculture machine
    Warranty One year after shipping arrival
    Payment terms L/C, T/T, West Union
    Delivery time 15- 25 days after down payment


    Product Range details:
    Tube Seal—O-Ring with anti-exthusion backup washer
    Tie Rod—High tensile steel
    Piston Rod—Chrome Plated C1045 Steel
    Rod Clevi—Ductile iron
    End Caps—High Grade Iron/ Casting Seel
    Piston—High grade ductile iron, precision machined
    Piston Wear Ring—Glass filled nylon Wear Ring/ Urethane Seal
    Rod Wiper—Metal encased nitrile rubber/Polyurethane Snap In
    Rod Seal—Urethane/Customers Specified
    Ports—Nptf for 2T, SAE ORB 3T
    Paint Color--- Seni-gloss black, Grey, Red or other customized colors
    Mounting Style—Pins And Clips Included/ Pin eye mounting on both ends/ Cross Tube

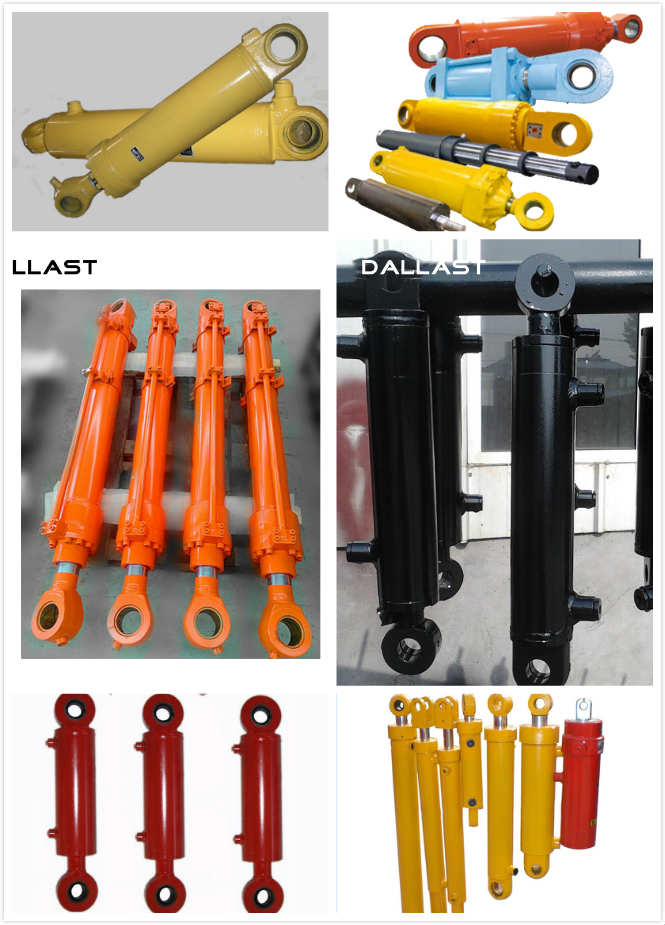

    Product Overviews
    We can design and produce most kind hydraulic cylinder.Single acting,double acting hydraulic cylinder.Big size and little size hydraulic cylinder.3-6 stages Telescopic hydraulic cylinder.
    (1) Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane ,pump truck,garbage truck,garbage compactor and boat used hydraulic cylinder etc.
    (2) Metallurgical Machinery cylinders for: decelerator, tile press etc.
    (3) Mining Machinery cylinders for: crasher, coal cutter shield tunneling machine and dame gate etc.
    (4) Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeder etc.

    Processing and inspection:
    1.Cylinder Tube
    According to the work pressure,work temperature,work situation and other special requirements,different cylinder tube will be choosed.
    1.1 Cylinder Tube:cold drawn precision seamless steel tube,hot rolled seamless steel tube,forged tube.
    1.2 Tube Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc.
    1.3 Surface Roughness:R0.16-0.32μm
    1.4 Inside Chromating:If necessary,inside tube will be chromated.


    2.Piston Rod
    2.1 Rod Material:35#,SAE1045(45#),35CrMo,42CrMo4,etc.

    2.2 Technical Treatment: Quenched and tempered.1.5-1mm,or 1.03mm per millimetre.

    3.Seal Kits
    According to customers' requirements and work condition,we will choose suitable seal kits,including:Hallite,NOK,SKF,Parker,Merker,Trelleborg,China made,Taiwan made.We will supply you suitable seal kits to ensure hydraulic cylinders a long lifetime,easy maintenance and simple repairing.


    4.Inspection and Testing
    4.1 We have professional quality control department,every step from raw material to finished product is in the same factory,each procedure will be tested by professional inspector.
    4.2 Before hydraulic cylinder is assemblied , every spare parts would be measured and cleaned .After hydraulic cylinder is assemblied , pressure test would be carried out one by one.We ensure the testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic cylinder must be tested without any leakage.
    Steel Agricultural Farm Hydraulic Cylinders Double Acting With Piston
