OEM Multi Stage Single Acting Hydraulic Cylinders 4 5 Large Bore Long Stroke for Trailer

OEM Multi Stage Single Acting Hydraulic Cylinders 4 5 Large Bore Long Stroke for Trailer

    • OEM Multi Stage Single Acting Hydraulic Cylinders 4 5 Large Bore Long Stroke for Trailer
    • OEM Multi Stage Single Acting Hydraulic Cylinders 4 5 Large Bore Long Stroke for Trailer
    • OEM Multi Stage Single Acting Hydraulic Cylinders 4 5 Large Bore Long Stroke for Trailer
  • OEM Multi Stage Single Acting Hydraulic Cylinders 4 5 Large Bore Long Stroke for Trailer

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure Direction: Single Acting Pressure: 16-35MPa
    Temperature: Normal Or High Temperature HS Code: 8412210000
    OD: Custom ID: Custom

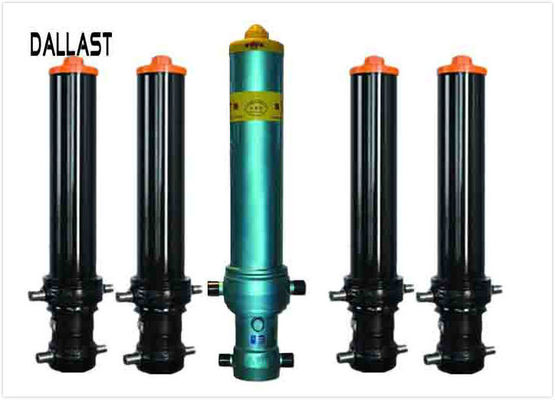

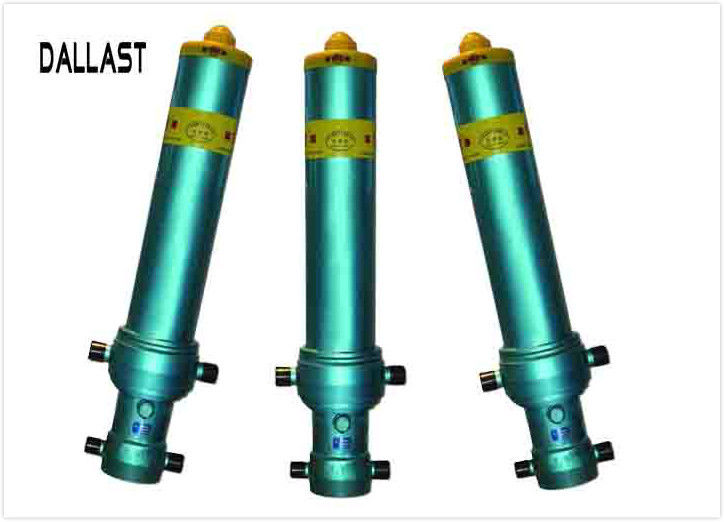

    OEM Multi Stage Single Acting Hydraulic Cylinders 4 5 Large Bore Long Stroke for Trailer

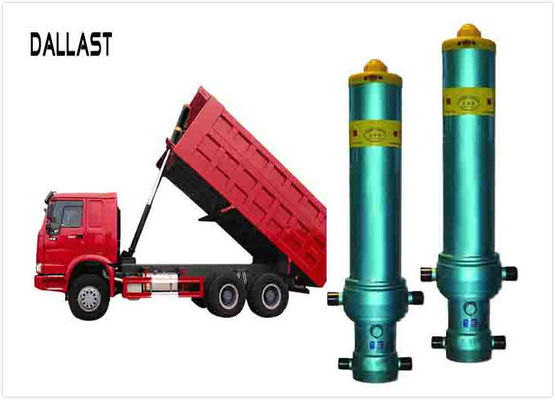

    Application:

    Can be used on construction machinery,engineering machinery,mining machinery,lock of water resource project and so on.



    Features:

    Telescopic cylinders have two or more piston rods in a coaxial arrangement to achieve greater extended length compared to the retracted length. An external force is required to return the cylinder to the retracted position. A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.



    Good quality and low noise



    The oil way design perfectly and can save the energy, avoid wast



    Single-acting cylinders transfer force and motion in one direction only



    Acts on the piston to push the piston rod out



    When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement



    Model

    Rated pressure

    (MPa)

    Bore diameter
    (mm)

    Stroke

    (mm)

    1st Stage diameter

    (mm)

    Stages




    FC 4TG-E152*4280
    16 158/136/115/95 4280 152 4
    FC 5TG-E152*4280 16 158/136/115/95/75 4280 152 5
    FC 4TG-E160*5390 16 166/141/115/95/75 5390 160 4
    FC 4TG-F175*4280 20 181/158/136/115 4280 175 4
    FC 4TG-F175*5390 20 181/158/136/115 5390 175 4
    FC 4TG-F175*5700 20 181/158/136/115 5700 175 5
    FC 5TG-F175*5390 20 181/158/136/115/95 5390 175 5
    FC 5TG-F175*5700 20 181/158/136/115/95 5700 175 5



    Designed For Single-acting,double-acting
    Stage 3~5stage cylinder
    Max inner tube 170mm,180mm,195mm,200mm,210mm,etc
    Working Pressure 16Mpa-35Mpa
    Tipping Weight 13-90Ton
    Seal Type Parker,NOK, BUSAK SHAMBAN or as customer's requirement
    Piston Rod

    Chrome or nickel plated,ground & polished piston rod

    Technical Treatment: Quenched and tempered. 1.5-1mm, or 1.03mm per millimetre

    Tube High tensile cold drawn tube, precision honed for extended seal life



    We can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details



    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.
