RoHS Certification Telescopic Hydraulic Ram HS Code 8412210000 for Dump Truck

RoHS Certification Telescopic Hydraulic Ram HS Code 8412210000 for Dump Truck

    • RoHS Certification Telescopic Hydraulic Ram HS Code 8412210000 for Dump Truck
    • RoHS Certification Telescopic Hydraulic Ram HS Code 8412210000 for Dump Truck
    • RoHS Certification Telescopic Hydraulic Ram HS Code 8412210000 for Dump Truck
  • RoHS Certification Telescopic Hydraulic Ram HS Code 8412210000 for Dump Truck

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Delivery Time: 15-25 Days
    HS Code: 8412210000 Power: Hydraulic
    Structure: Telescopic Cylinder Test: 100% Test
    High Light:

    telescopic hydraulic cylinder

    ,

    elescoping hydraulic ram



    RoHS Certification Telescopic Hydraulic Ram HS Code 8412210000 for Dump Truck





    1 . What can Dallast do?

    Dallast have professional hydraulic cylinder Production base.With nearly 15 years of professional R & D and production of hydraulic cylinder's experience, the company covers an area of more than 12 square meters. The existing staff of 203 people including 21 professional technicians. It is a set of design research and development, production, sales and service of modern hydraulic cylinder in one of the production bases.



    2. What are the main products of Dallast?

    Front - End Multistage Hydraulic Cylinder (Fc/Fe/Fee,Used For Dump Truck)

    Under - Body Hoist Multistage Hydraulic Cylinder (Bore Size From 70-110mm ,Stroke From 500-2000mm)

    Engineering Piston Hydraulic Cylinder (Used For Trailer, Modified Vehicle, Construction Machinery, Forklift And Agricultural Machinery)

    And so on.



    3. What is Dallast strengths?

    Dallast have all the equipment for the production of hydraulic cylinders .

    Dallast provide design services according to your requirements .

    Dallast can supply metric and imperial size cylinder .

    Dallast imported seals as required .

    Dallast has its own electroplating plant.

    Complete quality control system .

    ST52,16Mn,45#,20# tube

    Chrome plated thickness >30 mircron.

    Single/double acting.

    3~5 stages cylinder.

    Working Pressure:16~22Mpa or more high pressure.

    Various mounting type.

    Easy installation.

    High quality guarantee.

    Low friction seals.

    Constant speed and force.



    Parameter:

    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
    169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
    169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
    169-4E-5460 4 16-19 169 5460 32-60 6.5-7.3
    185-4E-4280 4 16-19 185 4280 25-45 5.6
    185-4E-4640 4 16-19 185 4640 30-45 5.6-6.1
    185-4E-5000 4 16-19 185 5000 32-50 6.2-6.5
    185-4E-5390 4 16-19 185 5390 40-60 6.2-6.8
    185-4E-5460 4 16-19 185 5460 40-65 6.5-7.3
    185-4E-5780 4 16-19 185 5780 45-70 6.9-7.7
    185-4E-6000 4 16-19 185 6000 50-80 7.3-8.2
    191-5E-5780 5 16-19 191 5780 40-70 6.9-7.7
    191-5E-6200 5 16-19 191 6200 45-80 7.3-8.2
    191-5E-7130 5 16-19 191 7130 50-85 7.8-8.5



    Hydraulic Cylinder Quality Guarantee System:

    Program before Delivery

    1. Trial Operation Test

    2. Start-up Pressure Test

    3. Pressure-Tight Test

    4. Leak Test

    5. Full Stroke Test

    6. Buffer Test

    7. Testing the Effect of Limit

    8. Load Efficiency Test

    9. Reliability Test

    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.



    Profile:

    We are Dallast Technology Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.
    Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.
    15 years in manufacturing hydraulic cylinders, application for water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.

    1 Founded in 2002,we have more than 15 years manufacture experience
    2 Our own factory
    3 ISO9001-2008
    4 Competitive price and high quality
    5 Based on your drawing or requirement
    6 Rigid matching control and proper seals
    7 Easy install and easy maintain
    8 On time delivery



    Product Show:

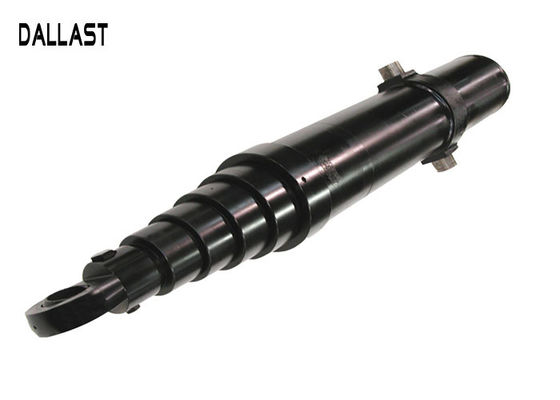

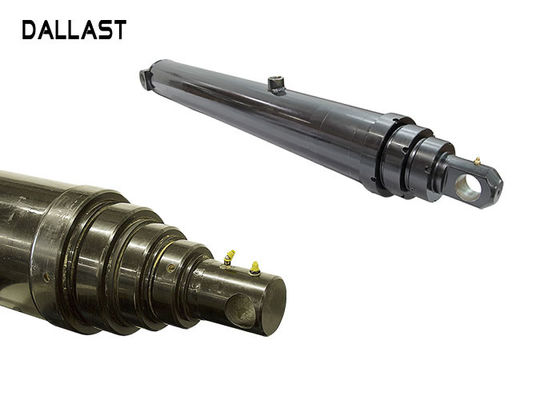

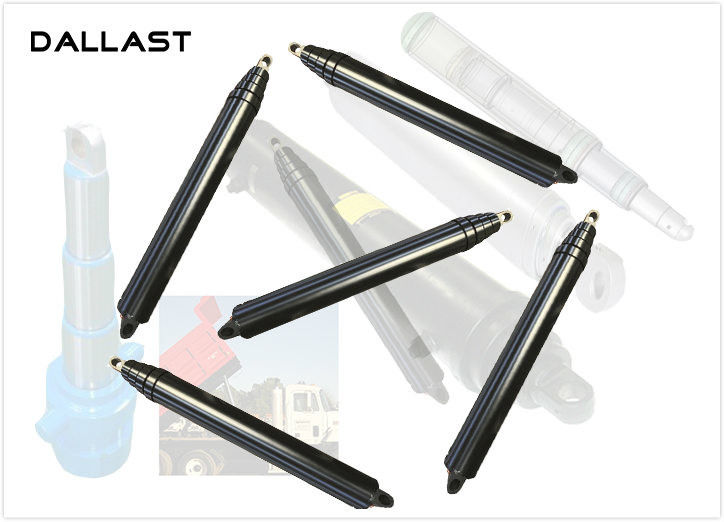

    RoHS Certification Telescopic Hydraulic Ram HS Code 8412210000 for Dump Truck
