| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, L/C, D/P |
| Supply Ability: | 1 Piece Per Year |
| Acting Way: | Single Acting | Means Of Transport: | Ocean, Air |
|---|---|---|---|
| Surface Coating: | Sandblasting, Primer Paint, Middle Paint, Finish | Delivery Time: | 15-25 Days |
| HS Code: | 8412210000 | Test: | 100% Test |
| High Light: | electric telescopic cylinder,elescoping hydraulic ram |
||

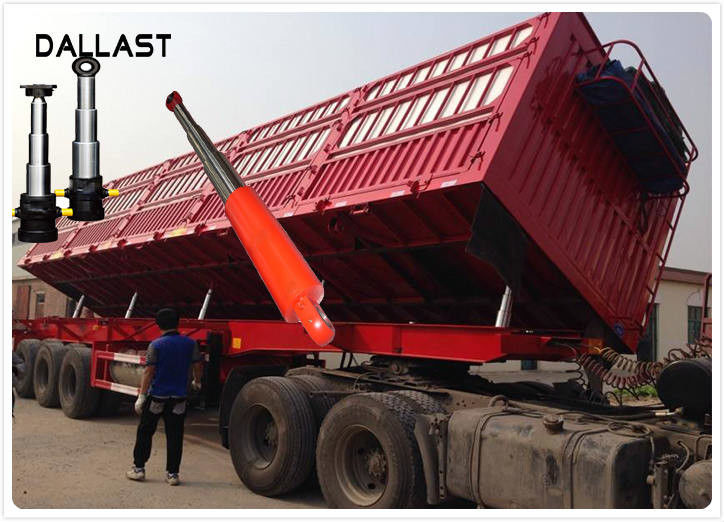

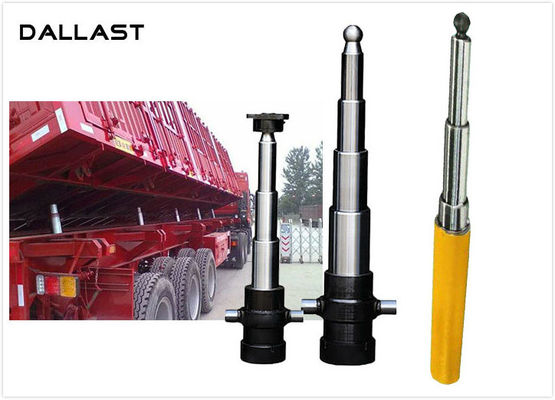

Welded Regular Pressure Single Acting Chief Telescopic Hydraulic Ram for Side Dumper
Parameter:
|
RoHS Welded Regular Pressure Telescopic Hydraulic Ram for Side Dumper
|
||||||
| Model | Rated pressure | Bore diameter | Installation distance | Stroke | Rated theoretical thrust(Ton) | |
| (MPa) | (mm·) | (mm) | (mm) | First class | Last class | |
| 4TG-E180*800 | 16 | 180 | 140 | 800 | 41 | 21 |
| 4TG-E160*800 | 16 | 160 | 140 | 800 | 32 | 17 |
| 3TG-E150*800 | 16 | 150 | 140 | 800 | 28 | 14.5 |
| 5TG-E130*750 | 16 | 130 | 140 | 750 | 21 | 11 |
| 3TG-E130*900 | 16 | 130 | 140 | 900 | 21 | 11 |
| 4TG-E110*1360 | 16 | 110 | 140 | 1360 | 15 | 3.2 |
| 3TG-E110*1530 | 16 | 110 | 140 | 1530 | 15 | 6 |
| 3TG-E110*1350 | 16 | 110 | 140 | 1350 | 15 | 6 |
| 3TG-E110*1020 | 16 | 110 | 140 | 1020 | 15 | 6 |
| 3TG-E110*900 | 16 | 110 | 260 | 900 | 15 | 6 |
| 2TG-E110*1020 | 16 | 110 | 140 | 1020 | 15 | 10 |
| 3TG-E90*1155 | 16 | 90 | 140 | 1155 | 10 | 3 |
| 3TG-E90*1020 | 16 | 90 | 140 | 1020 | 10 | 3 |
| 3TG-E90*900 | 16 | 90 | 260 | 900 | 10 | 3 |
| 3TG-E90*750 | 16 | 90 | 140 | 750 | 10 | 3 |
| 2TG-E90*900 | 16 | 90 | 140 | 900 | 10 | 6 |
| 2TG-E90*600 | 16 | 90 | 260 | 600 | 10 | 6 |
| 2TG-E90*500 | 16 | 90 | 260 | 500 | 10 | 6 |
| 3TG-E70*750 | 16 | 70 | 140 | 750 | 6 | 2 |
| Hydralic Cylinder for Side Dumper | |
| HS Code | 8412210000 |
| Application | Side Dump Truck |
| Material of cylinder tube | Alloy Steel, Stainless Steel |
| Seal | Hallite,SKF,NOK,Guarnitec,Parker |
| Coating | Chrome plated |
| Temperature | -30ºC~80ºC |
| Working pressure | 16mpa-62mpa |
| Stroke | 300mm-1500mm |
| Color | Red black blue gray,can custom according request |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Plunger | 20#, 45# steel with high frequency quenching |
| Certification | ISO9001-2009 ,TS16949 |
| Package | Shrink film, pallet, plywood case and carton |
| Warranty | One year after shipping arrival |
| Payment terms | T/T, L/C, West Union,Paypal |
| Delivery time | 15- 25 days after down payment |
Hydraulic Cylinder Quality Guarantee System:
Program before Delivery
1. Trial Operation Test
2. Start-up Pressure Test
3. Pressure-Tight Test
4. Leak Test
5. Full Stroke Test
6. Buffer Test
7. Testing the Effect of Limit
8. Load Efficiency Test
9. Reliability Test
Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.
Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.
Cylinder and cylinder of the advantages and disadvantages:
1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
Profile:
We are Dallast Technology Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.
Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.
15 years in manufacturing hydraulic cylinders, application for water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.
The only one super size cylinder manufactuer in China.
2000m2 synthetic office building of computer control net work center.
GB/T9001-2000, IDT ISO 9001:2000 quality management system.
AAA grade credit certificate issued by international credit assessment center.
Product Show:
