| Place of Origin: | China |
| Brand Name: | DALLAST or on request |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | customied |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 20-30 work days or on request |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Application: | Excavator Boom/arm/ Bucket | Pressure: | 60-350 Bar |
|---|---|---|---|
| Temperature: | Normal Or High Temperature | Piston Rod: | Stainless Steel, 27SIMN, Or On Request |
| Structure: | Double Acting Flange | Size: | Custom |
| High Light: | double acting ram cylinder,dual action hydraulic ram |
||

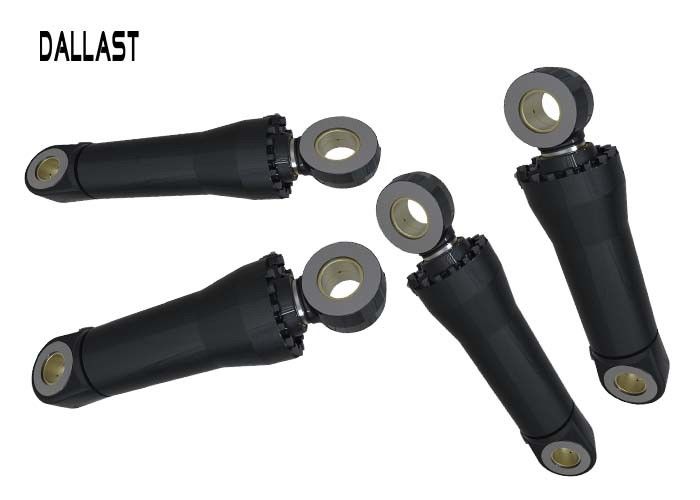

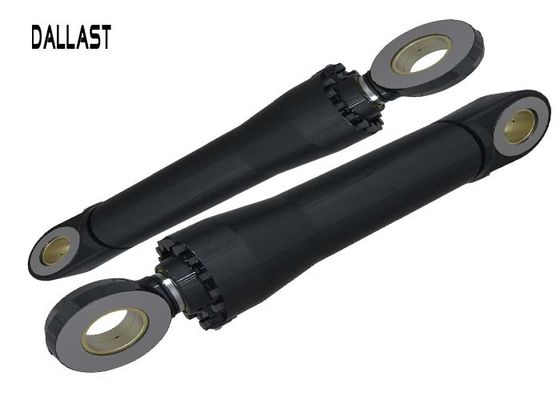

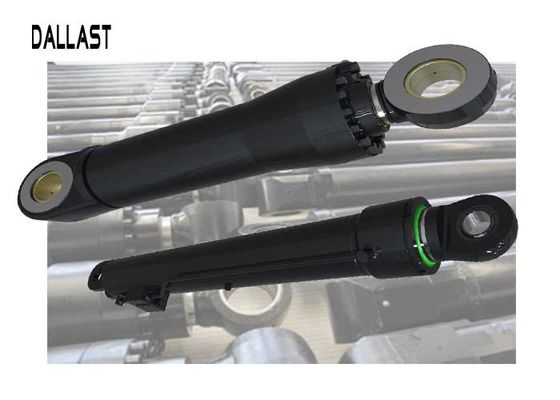

Standard Flange Double Acting Hydraulic Ram for Excavator Boom Arm Bucket
Advantages:
1. The ultimate in strength is achieved by this design.
2. Highly recommended for applications where high shock loads and internal pressure spikes can be expected.
3. With any stroke length and a wide range of fixing elements.
4. Rod end connections.
| models |
pressure (Bar) |
stroke (mm) |
bore (mm) |
the diameter of rod (mm) |
push(KN) | tension(KN) |
capacity (ton) |
| HSGK01-160/90E-131 | 70 | 715 | 160 | 90 | 321.7 | 219.9 | 13 |
| HSGL01-100/60E-131 | 100 | 1200 | 100 | 60 | 125.66 | 87.65 | 23 |
| HSGK01-80/50E-131 | 65 | 700 | 80 | 50 | 101.79 | 70.37 | 34 |
| HSGK01-80/50E-131 | 65 | 640 | 80 | 50 | 101.79 | 70.37 | 43 |
| HSGK01-80/50/E-131 | 72 | 550 | 80 | 50 | 101.79 | 70.73 | 25 |
| HSGL01-80/50E-131 | 87 | 500 | 80 | 50 | 80.43 | 54.98 | 34 |
| HSGL01-80/50E-131 | 63 | 440 | 80 | 50 | 80.43 | 43.41 | 32 |
| HSGL01-63/35E-131 | 97 | 200 | 63 | 35 | 50 | 34.5 | 12 |
| HSGL01-63/35E-131 | 78 | 300 | 63 | 35 | 50 | 34.5 | 32 |
| HSGL01-50/28E-131 | 105 | 140 | 50 | 28 | 31.42 | 21.56 | 43 |
|
Engineering machinery hydraulic cylinder HSG series double acting single piston rod hydraulic cylinder, according to the use function is divided into : steering cylinder, boom cylinder, lifting cylinder, tilt cylinder and quick change cylinder, has the characteristics of connecting mode diversification and buffer device etc.. maining machinery and fire engines, sanitation vehicles and other special vehicles. |
|||||||
Please note that the regularly stocked telescopic cylinders above. If you are interested in our hydraulic cylinders for excavator, please feel free to contact our office and sent us your drawings to place an order for quick delivery.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.
Piston Seals:
Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
Warranty:
We offer 12 months warranty.
Tips:
Do you need special cylinders?
Our technicians will help you to design them and we will manufacture them according to your requirements.
We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings.
| A. The drawing details are as follows. | |
| Bore size |
Stroke length
|
| Rod diameter |
Mounting type
|
| Mounting length |
Paint color requirement
|
|
B. The product application description details |
|
| 1. Type of machine(loader, steer loader, excavator, and etc.) | |
|
2. Type of function(hoist, swing, steering, and etc.) 3. Type of structure(piston, telescopic) |
|
| 4. Single or double acting | |
| 5. Operating pressure | |
