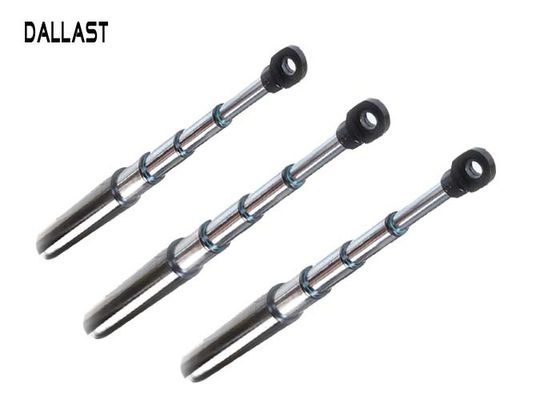

Piston Type Multi stage Telescopic Hydraulic Cylinder with Chrome Steel Rod

Piston Type Multi stage Telescopic Hydraulic Cylinder with Chrome Steel Rod

    • Piston Type Multi stage Telescopic Hydraulic Cylinder with Chrome Steel Rod
    • Piston Type Multi stage Telescopic Hydraulic Cylinder with Chrome Steel Rod
    • Piston Type Multi stage Telescopic Hydraulic Cylinder with Chrome Steel Rod
  • Piston Type Multi stage Telescopic Hydraulic Cylinder with Chrome Steel Rod

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure Direction: Single Acting Pressure: 160-350 Bar
    Temperature: Normal Or High Temperature HS Code: 8412210000
    Power: Hydraulic Structure: Piston Cylinder

    Piston Type Hydraulic Cylinder Telescopic Multistage 3 with Chrome Steel Rod



    Advantages:

    1. Single-acting hydraulic cylinders piston transfer force and motion in one direction only, with good quality and low noise, can save the energy, avoid wast



    2. Acts on the piston to push the piston rod out



    3. Simple structure, large outout force, stable and reliable performance, easy maintenance



    4. Wide application: dump truck; side tipping vehicle; compressed equipment, etc.



    5. Seal kits: Hallite, NOK, SKF, Parker etc.



    6. Warranty: We offer 12 months warranty



    Chrome steel rods:

    This kind of rods processed by advanced precision cold drawing, accurate grinding and precision polishing. All of the technical indexes can meet the requirement of the customers.This kind of chrome plated rods are the piston rods for the hydraulic cylinder.





    specification

    pressure

    (Bar)

    bore size

    (mm)

    mounting length

    (mm)

    stroke length

    (mm)

    push
    first stage last stage
    3TG-E180*200 160 160 140 800 410 210
    3TG-E160*200 160 160 140 800 320 170
    3TG-E150*250 160 160 140 800 280 145
    3TG-E130*150 160 130 140 750 210 110
    3TG-E130*300 160 130 140 900 210 110
    3TG-E110*340 240 110 140 1360 150 32
    3TG-E110*510 350 110 140 1530 150 60

    We can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.





    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details



    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.



    Product :

    Telescopic cylinders have two or more piston rods in a coaxial arrangement to achieve greater extended length compared to the retracted length. An external force is required to return the cylinder to the retracted position. A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.



    Piston Type Multi stage Telescopic Hydraulic Cylinder with Chrome Steel Rod
