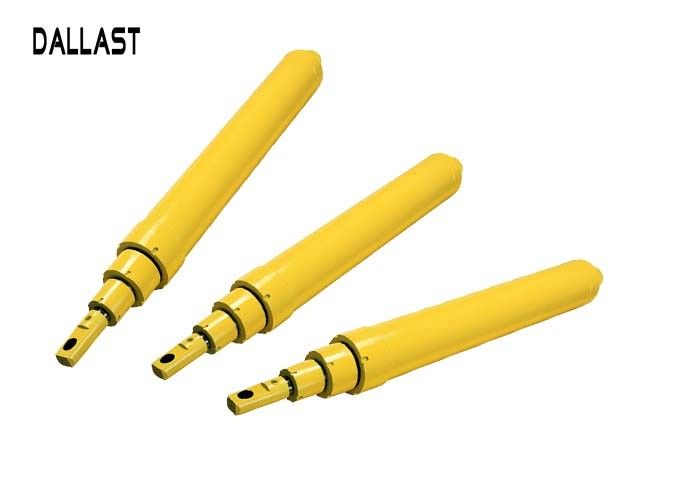

3 Stage Standard Telescopic Hydraulic Cylinder Piston Chrome Painted

3 Stage Standard Telescopic Hydraulic Cylinder Piston Chrome Painted

    • 3 Stage Standard Telescopic Hydraulic Cylinder Piston Chrome Painted
    • 3 Stage Standard Telescopic Hydraulic Cylinder Piston Chrome Painted
    • 3 Stage Standard Telescopic Hydraulic Cylinder Piston Chrome Painted
  • 3 Stage Standard Telescopic Hydraulic Cylinder Piston Chrome Painted

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: 16-35MPa Temperature: Normal Or High Temperature
    Color: Any Color You Can Choose Action Type: Single Acting
    Mode Type: Telescoping Cylinder Rod Material: Steel, Or On Request
    High Light:

    electric telescopic cylinder

    ,

    elescoping hydraulic ram

    3 Stage Standard Telescopic Hydraulic Cylinder Piston Chrome Painted For Sale



    Features:

    Single acting cylinders transfer force and motion in one direction only; good quality and low noise; the oil way design perfectly and can save the energy, avoid wast; acts on the piston to push the piston rod out



    When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement



    Samples can be provide to you before starting cooperation



    We are factory and can assure the prompt delivery time



    Packing can be customized, often using standard export wooden case packing



    Quality control:

    1. We have professional quality control department,every step from raw material to finished product

    is in the same factory,each procedure will be tested by professional inspector.

    2. Before hydraulic cylinder is assemblied , every spare parts would be measured and cleaned .

    After hydraulic cylinder is assemblied , Pressure test would be carried out one by one.We ensure the

    testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic

    cylinder must be tested without any leakage.



    Standard Telescopic Hydraulic Cylinder Details
    piston rod

    Material


    35#, SAE1045(45#), 35CrMo, 42CrMo4, etc
    Technical Treatment Quenched and tempered. 1.5-1mm, or 1.03mm per millimetre
    seal kits

    Hallite, NOK, SKF, Parker etc.



    Application



    1 Tipping trailer
    2 Dump truck
    3 Side tipping vehicle
    4 Compressed equipment



    Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.

    And we can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.



    Product :

    Telescopic cylinders have two or more piston rods in a coaxial arrangement to achieve greater extended length compared to the retracted length. An external force is required to return the cylinder to the retracted position. A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.



    3 Stage Standard Telescopic Hydraulic Cylinder Piston Chrome Painted
