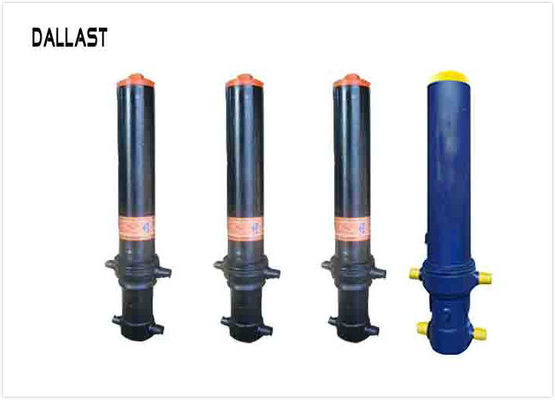

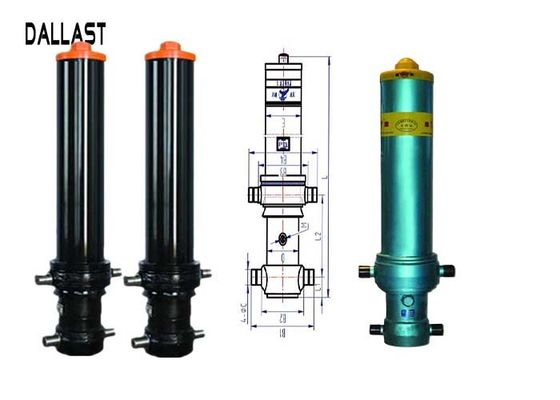

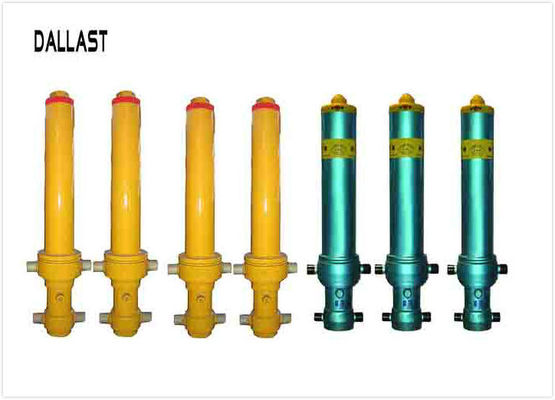

GS Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer

GS Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer

    • GS Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer
    • GS Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer
    • GS Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer
  • GS Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Usage: Automation And Control Pressure Direction: Single Acting
    Pressure: 16-35MPa Temperature: Normal Or High Temperature
    Color: Any Color You Can Choose HS Code: 8412210000
    High Light:

    electric telescopic cylinder

    ,

    elescoping hydraulic ram

    Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer



    Application:

    Can be used on construction machinery,engineering machinery,mining machinery,lock of water resource project and so on.



    Features:



    Good quality and low noise



    The oil way design perfectly and can save the energy, avoid wast



    The pump connected with the motor directly can save the space



    Single-acting cylinders transfer force and motion in one direction only



    Acts on the piston to push the piston rod out



    When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement



    Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.





    specification

    pressure

    (MPa)

    bore size

    (mm)

    mounting length

    (mm)

    stroke length

    (mm)

    push (KN)
    first stage last stage
    5TG-E180*1360 16 180 343 1360 410 210
    5TG-E160*1530 16 160 343 1530 320 170
    5TG-E150*3205 16 150 343 3205 280 145
    5TG-E130*3460 16 130 343 3460 210 110
    5TG-E130*2980 16 130 343 2980 210 110
    5TG-E110*3205 16 110 343 3205 150 32
    piston rod

    Material


    35#, SAE1045(45#), 35CrMo, 42CrMo4, etc
    Technical Treatment Quenched and tempered. 1.5-1mm, or 1.03mm per millimetre
    seal kits

    Hallite, NOK, SKF, Parker etc.



    The most common problems when selecting a hydraulic cylinder are as follows:



    A. Retract dimension

    B. Stroke length (Inches / mm)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details





    We can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.







    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.



    Product :

    Telescopic cylinders have two or more piston rods in a coaxial arrangement to achieve greater extended length compared to the retracted length. An external force is required to return the cylinder to the retracted position. A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.



    GS Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer



    GS Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer
