    Product Details:

    Place of Origin: China
    Brand Name: DALLAST or on request
    Certification: GS, RoHS, CE, ISO9001
    Model Number: customied

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 20-30 work days or on request
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: 10-35MPa Temperature: Normal Temperature
    OD: Customized Rod: Stainless Steel, Alloy Steel, Carbon Steel, Or On Request
    Structure: Double Acting Mouting Length: Standard Or OEM

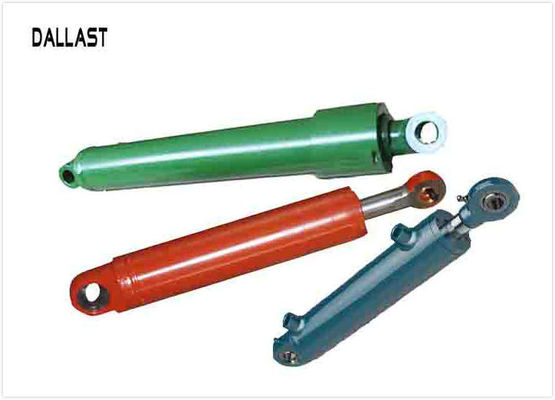

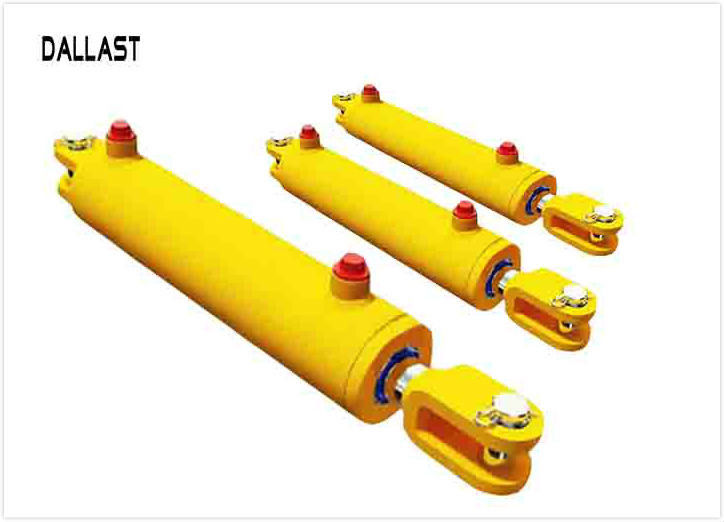

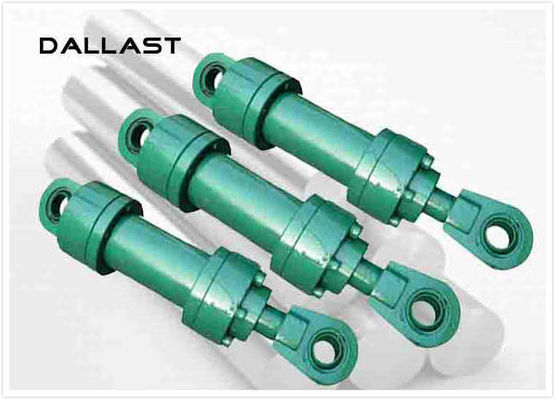

    Hydraulic Cylinder Types of Piston Double Ating Agricultural Chrome Custom



    This type hydraulic cylinder is designed to be extremely reliable in industrial and mobile applications. It has a nominal working pressure of 16-35 MPa. These cylinders are equipped with ground and chrome plated rods for longer life on gland seals and shaft surface protection. The cylinder barrel is honed to finish for longer seal life.



    Features:

    Nominal pressure: 25 MPa (250 bar 3625 psi)



    Static test pressure: 37 MPa (370 bar 5440 psi)



    Several bore sizes and in varying strokes



    The operating temperature (oil and ambient) is -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen



    Speed range: Speed range of operation (excluding cushion parts) is less than 200mm/s



    Installation method:

    Many mounting styles: The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.



    Mounting position: Optional



    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Company profile:

    Our Company is specializing in the production of piston rods and various types of hydraulic cylinders. We have the entire production of various professional piston rod and hydraulic equipment. Unlike many hydraulic cylinder brands, Shenzhen DALLAST manufactures the hydraulic cylinders used in various applications. They require special material machining to make certain each part works precisely as designed without failure.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    Delivery:

    1.We export from Qingdao port by sea.

    2. Goods will be delivered on time.

    3. Goods can arrive at the destination safely.



    Packing:

    1. Goods are packed with export standing standard.

    2. It includes pallets, suitable carton size, steel box, iron case,paper box,plywood box or according to the requirements of customers.



    Warranty:

    We offer 12 months warranty



    Tips:

    We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:

    A. The drawing details are as follows.
    Bore size

    Stroke length



    Rod diameter

    Mounting type



    Mounting length

    Paint color requirement



    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting
    5. Operating pressure
