| Place of Origin: | Shandong |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO9001-2009 TS16949 |
| Model Number: | Standard , Non-standard |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton box |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,paypal |
| Supply Ability: | 50000PCS per year |
| Structure: | 2 Way Earring Cylinder | Seal: | Hallite,SKF,NOK,Guarnitec,Parker |
|---|---|---|---|
| Price: | Cheap Hydraulic Cylinder With Good Quality | Material: | Alloy Steel,Carbon Steel,Stainless Steel,27SiMn |
| Piston Rod: | Tempering, Plated Nickel, Chrome Or Ceramic | Cylinder Type: | Dual Action Hydraulic Cylinder |
| Size: | Several Inch Type Hydraulic Cylinder Can Be Custom | Type: | Large Heavy Hydraulic Cylinder |
| High Light: | long stroke hydraulic ram,long stroke single acting hydraulic cylinder |
||

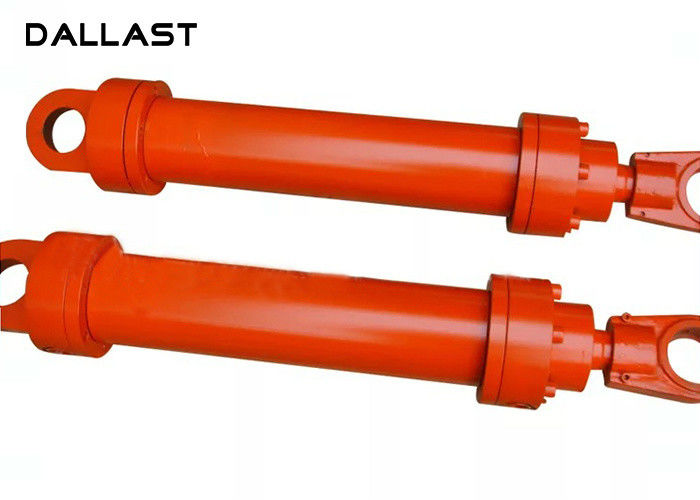

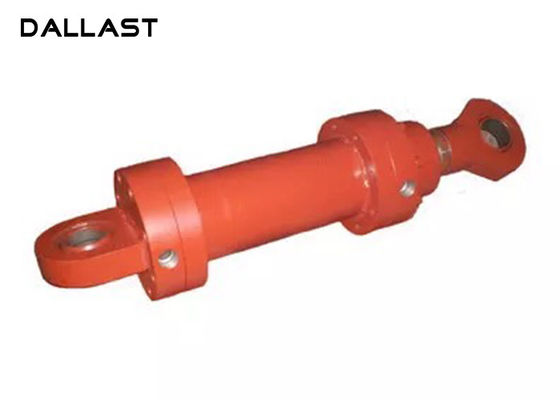

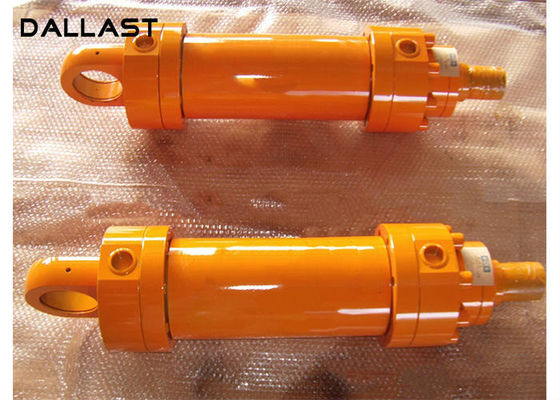

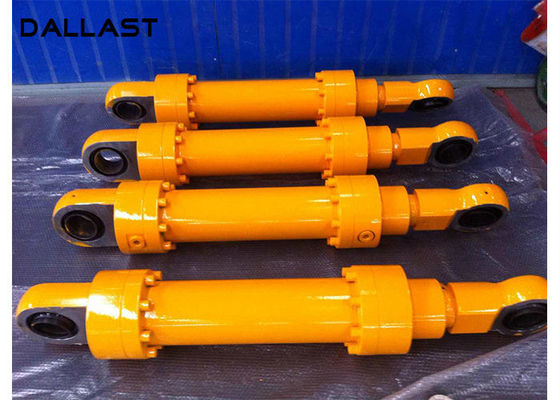

Double Acting Flange Long Stroke Hydraulic Cylinder Design With Piston
Advantage:
Hydraulic cylinder is special products, According to user requirements, design and manufacture of this series of products.professional custom non-standard.OEM service is available.We are pleased to process according to the customer's drawings.Please kindly send us your drawings, models or providing us your parameters and specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc. We can determine the most suitable model for you.We will provide competitive price.We have professional R&D team with rich design experience.We also establish strict but scientific product testing system so that products have perfect.We are the leader manufacturer of hydraulic industry in China with experience and technology accumulation. With strong technical team we could solve any annoyance of you.The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.
It depends on the ordering quantity. Generally, we will take 20-25 days. If there are any changes, we will inform you in time.
We have 12 months warranty. In this year, if the quality problem we will free repair for you.
Application: mechanical vehicles, metallurgical equipment, water conservancy and hydropower, steel industry etc.
| Model | variety of specifications | Bore Diameter | 20mm to 1000mm |
| Max. Stroke | 20000mm | Working Pressure | 1Mpa to 70Mpa |
| Structure | Piston cylinder | Hardness | HRC40-55 |
| Tube | Cold drawn honed tubling | Piston | High grade ductile iron |
| Piston rod | Chromed CK45 | Paint color | Semi-gloss black, grey, red,as your request |
| End | Double ended | Mounting style | Flange ,Double Earring |
