| Place of Origin: | Shandong China |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Pressure Direction: | Single Acting Hydraulic Cylinder | Model Number: | 3/4/5/6 Stage |
|---|---|---|---|
| Heat Treatment: | Quenching | Capacity: | OEM,ODM,Sample |
| Working Temperature: | -30℃-80℃ | Usage: | Dump Trailer |
| High Light: | dump truck hydraulic ram,dump truck hydraulic cylinder |
||

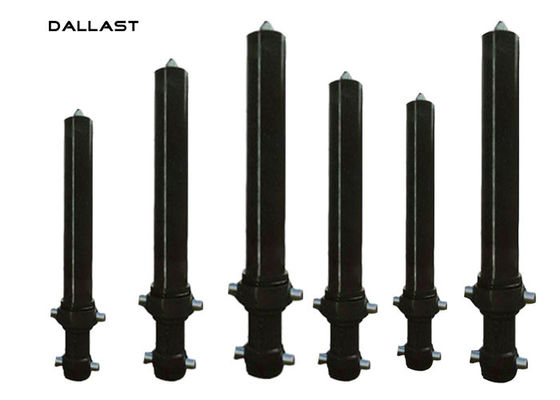

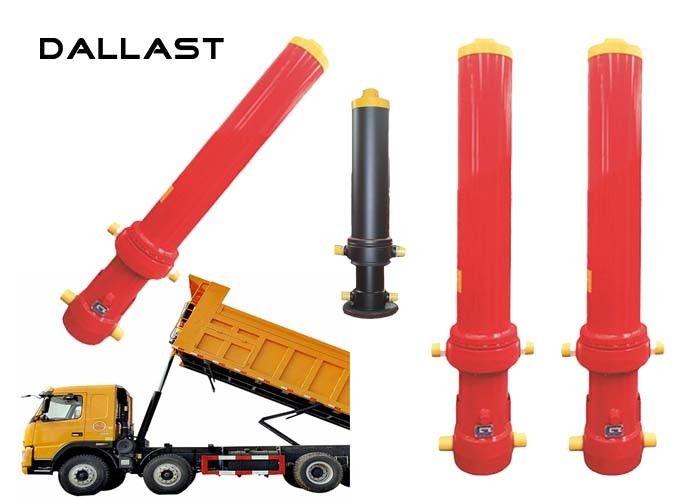

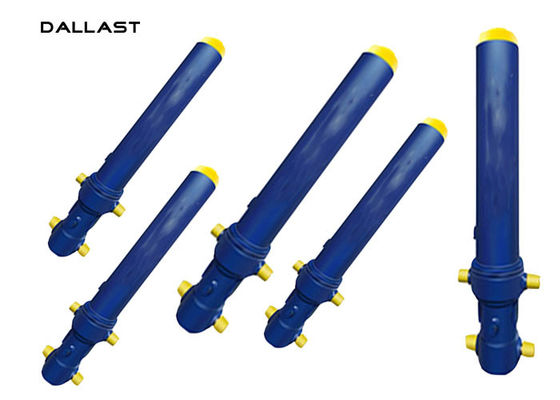

Long Prince Hydraulics Ram Dump Trailer Surplus Hydraulic Cylinder
Customize Cylinders That Just For You
When it comes to hydraulic cylinder, one size does not fit all diverse industry, so you need a partner like us that can provide custom design and solution just for you.
Rod heat treatment:
Piston rods are tempering and hardening by precision control systems throughout entire process for consistent performance.
The material are analysed and evaluated by metallographic examination for quality control.
Making cylinder that are worthy of your equipment:
counting on reverse engineering expertise, the cylinder that manufactured precisely are equal to the original.
You will be without worry,when the cylinder will interchange completely with the original on your equipment.
The cylinder that are worthy of your equipment mean higher work efficiency and less downtime won't let you down.
|
Our company is professional manufacturers of the hydraulic cylinder, valve locks and complete sets of hydraulic Hydraulic cylinder system , we can independent research and development various specifications of middle and high hydraulic cylinder. specification of DALLAST's product
FC type hydraulic cylinder |
|||||
| MODEL NO. | First Stage Diameter | Stroke | Largest Sleeve OD | Closed length | Mounting distance |
| FC-3-107-2855 | 107 | 2855 | 152 | 1268 | 311 |
| FC-3-107-3115 | 107 | 3115 | 152 | 1368 | 311 |
| FC-3-107-3265 | 107 | 3265 | 152 | 1418 | 311 |
| FC-3-107-3415 | 107 | 3415 | 152 | 1468 | 311 |
| FC-3-107-3715 | 107 | 3715 | 152 | 1568 | 311 |
| FC-3-126-3230 | 126 | 3230 | 219 | 1403 | 343 |
| FC-3-126-3680 | 126 | 3680 | 219 | 1553 | 343 |
| FC-3-126-3830 | 126 | 3830 | 219 | 1603 | 343 |
| FC-3-126-4400 | 126 | 4400 | 219 | 1803 | 343 |
| FC-3-145-3230 | 145 | 3230 | 219 | 1403 | 343 |
| FC-3-145-3680 | 145 | 3680 | 219 | 1553 | 343 |
| FC-3-145-3830 | 145 | 3830 | 219 | 1603 | 343 |
| HS Code | 8412210000 |
| Seal | Hallite |
| Coating | All tubes are chrome plated |
| Cylinder diameter | 50mm-170mm |
| Rod diameter | 30mm-125mm |
| Working pressure | 20-30MPa |
| Stroke | 449mm-2940mm |
| Mounting type | Earring-trunnion,double trunnion,double earring,or per customer's request |
| Certification | ISO9001:2008, ISO14001:2001 |
| Warranty | One year after shipping arrival |
| Delivery time | 15-25days after payment receiving |
As one of the designated supporting manufacturers of XCMG. We can develop, map, and manufacture all kinds of Hydraulic cylinder and with a sound means of detection and advanced processing technology, stable and reliable product performance.
We can also design according to customer's technical requirements, manufacturing of various national standard, non-standard hydraulic cylinders, applicable to all kinds of engineering, water conservancy, metallurgy, mining, oil and other industries.
Welcome to our factory and negotiate business!
