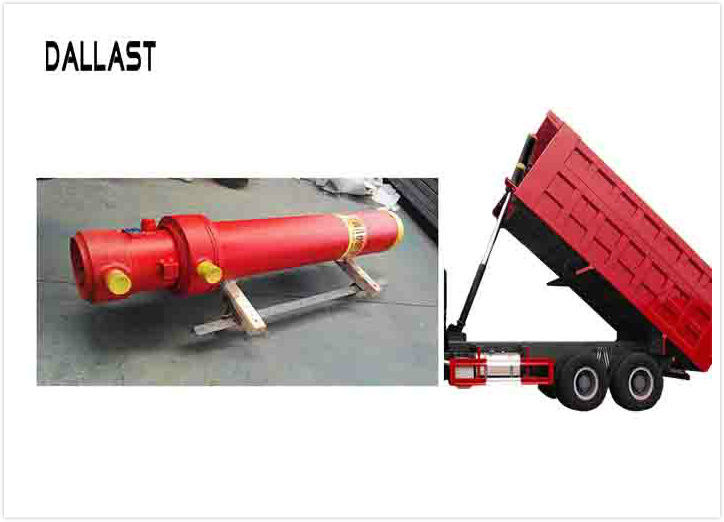

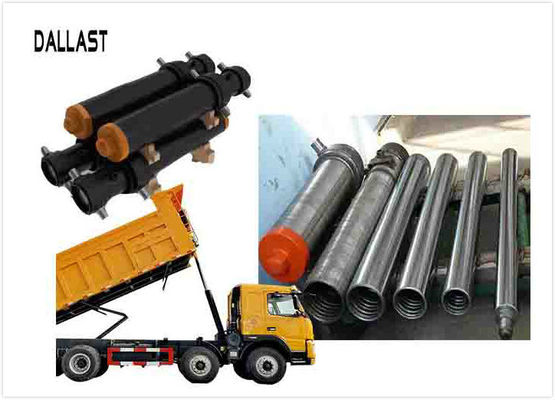

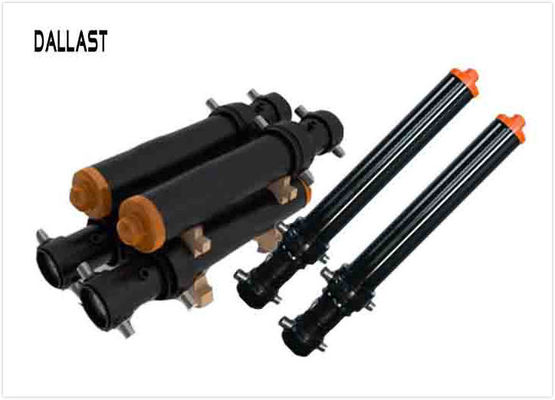

Standard Hydraulic Lift Cylinder Multi Stage Single Acting Chrome for Truck Lifting

Standard Hydraulic Lift Cylinder Multi Stage Single Acting Chrome for Truck Lifting

    • Standard Hydraulic Lift Cylinder Multi Stage Single Acting Chrome for Truck Lifting
    • Standard Hydraulic Lift Cylinder Multi Stage Single Acting Chrome for Truck Lifting
    • Standard Hydraulic Lift Cylinder Multi Stage Single Acting Chrome for Truck Lifting
  • Standard Hydraulic Lift Cylinder Multi Stage Single Acting Chrome for Truck Lifting

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: Normal Pressure Temperature: Normal Temperature
    Capacity: 13-90 Tons Rod Diameter: Custom
    Structure: Single Acting Function: Truck Lift, Hydraulic Tilt Cylinder
    High Light:

    hydraulic lift ram

    ,

    garbage truck hydraulic cylinders

    Standard Hydraulic Lift Cylinder Multi Stage Single Acting Chrome for Truck Lifting



    Advantdges:

    Higher efficiency

    Stronger weather resistance

    Better performance

    the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement

    The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections

    Warranty: We offer 12 months warranty



    Features:

    Acts on the piston to push the piston rod out

    Choice of Mounting Styles, Cross Tube or Trunnion

    Hard Chrome Plated Stages

    Big lifting force

    pressure ranges: could be customized

    Piston Ø: customized

    Piston rod Ø: customized

    Max. stroke speed: according to the product types

    We use hard chromed rods (other options are available)



    standard product type

    pressure

    (Bar)

    stroke

    (mm)

    close length

    (mm)

    3TG-E180*4210ZZ 160 4210 425
    4TG-E160*4130ZZ 160 4130 222
    4TG-E160*5150ZZ 160 5150 222
    4TG-E180*4000ZZ 160 4000 425
    4TG-E180*5390ZZ 160 5390 425
    3TG-E180*3850ZZ 160 3850 425
    4TG-E180*5390ZZ 160 5390 325
    Application can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.
    Tips In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.



    We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the

    drawings and tell us the details.



    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Material:

    Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details



    Standard Hydraulic Lift Cylinder Multi Stage Single Acting Chrome for Truck Lifting
