| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1 Piece Per Year |
| Material: | Alloy Steel | Origin: | Shandong, China |
|---|---|---|---|
| Work Temperature: | Normal Temperature | Color: | Any Color |
| HS Code: | 8412210000 | Working Pressure: | 16-32 Mpa |
| Surface Coating: | Sandblasting, Primer Paint, Middle Paint, Finish | ||
| High Light: | tractor loader hydraulic cylinders,agricultural hydraulic rams |
||
Double Acting Chrome Hydraulic Cylinder Piston Type for Agricultural Farm Truck
Double acting:
The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.
How Double Acting Hydraulic Cylinders Work and Their Uses:
With double acting hydraulic cylinders, the fluid acts on both sides of the piston, alternating between each side. They can be attached to external devices by using a gland to prevent fluid escape. Double acting cylinders have two ends that are supplied with hydraulic fluid, which is used to retract and extend the piston.We can provide :
Piston type hydraulic cylinder ram
Plunger type hydraulic cylinder ram
Telescopic type hydraulic cylinder ram
Welded hydraulic cylinder ram
Flange mounted hydraulic cylinder ram
Tie rod hydraulic cylinder ram
Double acting hydraulic cylinder ram
Single acting hydraulic cylinder ram
Multistage hydraulic cylinder ram
Servo hydraulic cylinder ram
Three advantages for hydraulic cylinder:
1. Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
2. More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
3. Lift More
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
About Our Company:
Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.
FAQ:
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact cylinder according to your specification and drawing.
Q: How long is your warranty period?
A: We offer 12 months warranty period after on board.
Q: Could we get small quantity samples?
A: Yes! We understand the quality test is important and we are glad to make the sample for you. The MOQ is 1pcs.
Q: How long is the production time?
A: Generally the production time is 15-25 days.
Q: What is your payment term?
A: For sample payment, generally 100% T/T payment in advance, west union, paypal.
For order payment, generally is 30% T/T in advance, 70% balance before shipment.
Parameter:
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
To get an immediate quotation,please provide us with the following necessary parameters:
1) Bore diameter
2) Piston rod diameter
3) Stroke length
4) Working pressure
5) Mounting method
| HS Code | 8412210000 |
| Application | Dump truck,Tipper,Trailer |
| Material of cylinder tube | Alloy steel |
| Seal | Kaden,Hallite, Parker,NOK,SKF etc |
| Coating | All tubes are chrome plated |
| Working pressure | 10MPa-32MPa |
| Stroke | 3000mm-12000mm |
| Color | Black,Blue,Yellow,White,Red etc |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Plunger | 20#, 45# steel with high frequency quenching |
| Certification | ISO9001:2008 ,SGS, TS16949 |
| Package | shrink film, pallet, plywood case and carton box |
| Warranty | One year |
| Main export market | USA, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites,Singapore |
| Payment terms | T/T, L/C, West Union |
| Delivery time | 15-25 days after down payment |

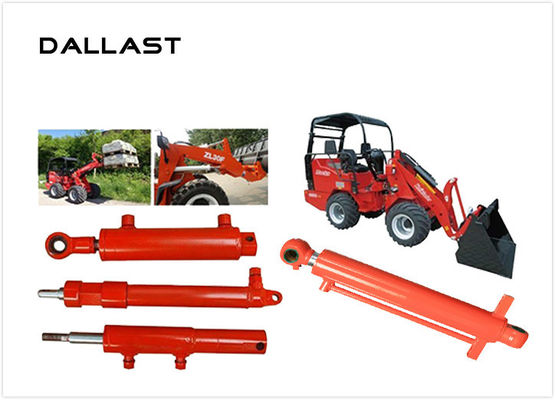

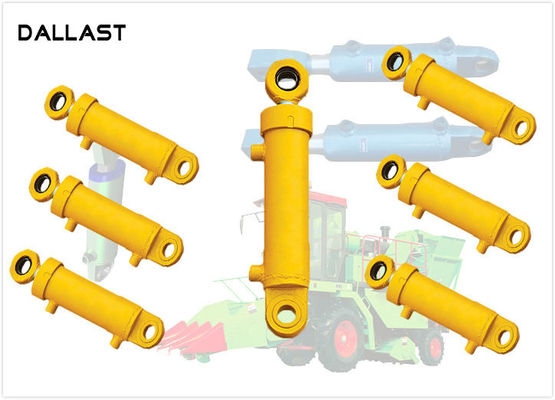

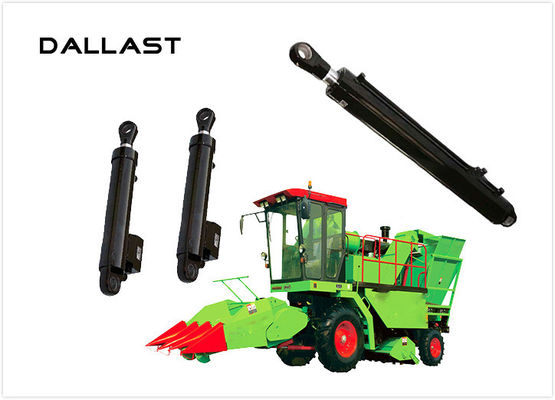

Product Show:
