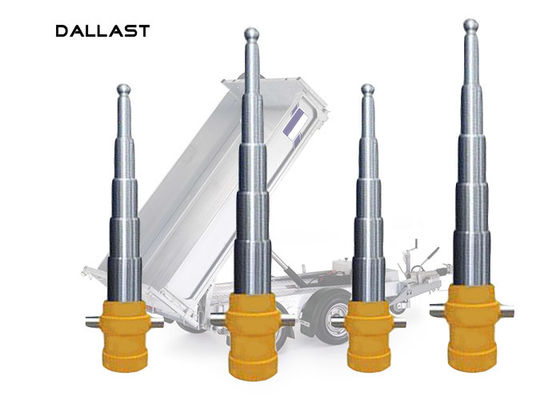

5 Inch Bore Single Acting Small Hydraulic Ram Welded Telescoping Cylinder

5 Inch Bore Single Acting Small Hydraulic Ram Welded Telescoping Cylinder

    • 5 Inch Bore Single Acting Small Hydraulic Ram Welded Telescoping Cylinder
    • 5 Inch Bore Single Acting Small Hydraulic Ram Welded Telescoping Cylinder
    • 5 Inch Bore Single Acting Small Hydraulic Ram Welded Telescoping Cylinder
  • 5 Inch Bore Single Acting Small Hydraulic Ram Welded Telescoping Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Model Number: Customization Type: Telescoping
    Color: Client's Request Factory Visit: Available
    Working Temperature: -30℃-80℃ Adjusted Form: Regulated Type
    High Light:

    single acting hydraulic cylinder

    ,

    industrial hydraulic cylinders

    5 Inch Bore Welded Telescoping Single Acting Small Hydraulic Ram Cylinder


    Material45# Steel
    Tempering hardnessHB240-260
    The depth of the high frequency2mm-3mm
    High frequency hardnessHRC55°±2°
    Chrome plating thickness0.03mm-0.06mm
    Chromium layer hardnessHV800-1000vpn
    Straightness≤0.08mm/m
    Surface roughnessRa0.03um- Ra0.06um


    Technical skills:
    The welds are done fully automated for consistency and integrity. With lean welding craft for creating the strong joint strength and eliminating the defect. The welds are defected by certified method like Dye Penetrant Ultrasonic.
    The rod is induction hardened prior to chrome plating, which prevent the rod from bending and scratching. The rod remains rustles over 100hours under salt spray test.
    The tube is skived burnished for the straightness and concentricity, the superior finish bring better sealing and longer life.

    NOBrandModel

    Bore diameter

    mm

    Installation distance   mm

    Stroke

    mm

    1DALLAST3TG-E110*15301101401530
    2DALLAST3TG-E110*13501101401350
    3DALLAST3TG-E110*10201101401020
    4DALLAST3TG-E110*900110260900
    5DALLAST3TG-E90*1155901401155
    6DALLAST3TG-E90*1020901401020
    7DALLAST3TG-E90*90090260900
    8DALLAST3TG-E90*75090140750
    9DALLAST2TG-E90*90090140900
    10DALLAST2TG-E90*60090260600
    11DALLAST2TG-E90*50090260500


    Safer: the dallast Series of hydraulic cylinder adopts a brilliant structural design and uses new material in its production, which enables it to work stable in the worst working conditions and thus ensures the safety of drivers and greatest benefits for its customers.
    Higher unloading speed: the use of brilliant structural design improves the dumping speed of the hydraulic cylinder!
    Higher lifting frequency: the DALLAST series can be used for 24-hour short distance high-frequency work. With its stable performance, low mechanic failure, it can reduce parking time and improve working efficiency.
    Greater environment adaptability: it adopts newly-developed seal patented technology and new material, and thus can work within a temperature range of -40°C-110°C. it can work smoothly in both high and low temperature environment.
    Lighter: it is 15%-20% lighter than other series of cylinder, but has improved its lifting force by 10%-15%.
    Greater lifting power: it has improved its lifting force by 10%-15% when compared with other series of cylinder, which will bring the customers with more benefit

    Packaging & shipping
    With standard export carton/wooden case packing or as customer’s requirements
    Our services
    All our hydraulic cylinder products with 1 year warranty period.
    If happened problems in the usage of warranty time, please send the damaged spare parts pictures for us, we will send the new one freely for you via express or by air. And urgent questions, please make a call for us.
    Our advantage
    1. Customization and OEM service is acceptable for us.
    2. All our hydraulic cylinders and accessories obtained ISO 9001:2008 certification.
    3. Samples can be providing to you before starting cooperation.
    4. We are factory and can assure the prompt delivery time.
    5. Packing can be customized. Often using standard export wooden case packing.

    5 Inch Bore Single Acting Small Hydraulic Ram Welded Telescoping Cylinder
