|Place of Origin:||Shandong China|
|Certification:||GS CE ISO 9001|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Carton or According to Customer's Require|
|Delivery Time:||15-25 days|
|Payment Terms:||T/T, Western Union, D/A, D/P, L/C|
|Supply Ability:||50000 Pieces/Per year|
|Extended Stages:||3-7 Stages||Model Number:||Customization|

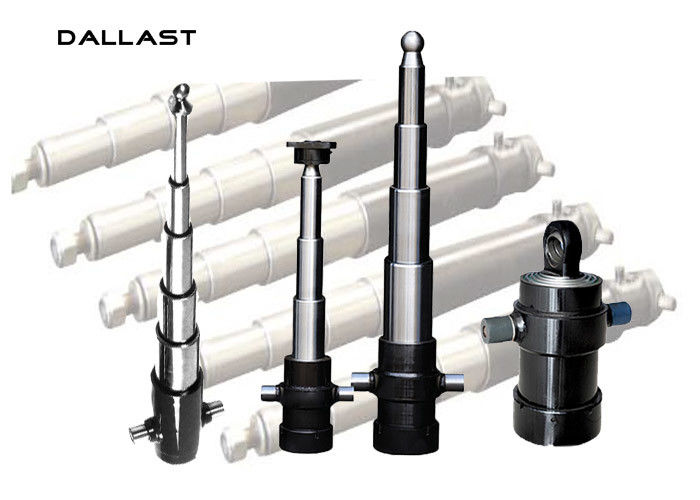

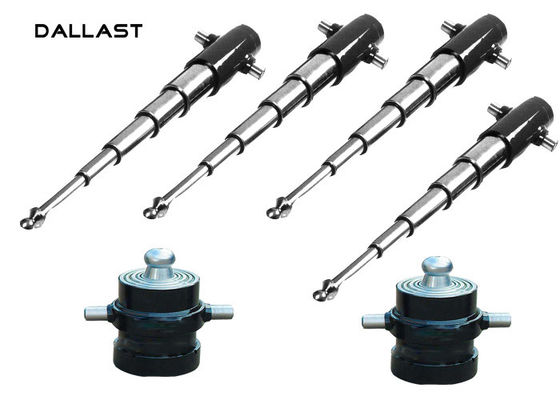

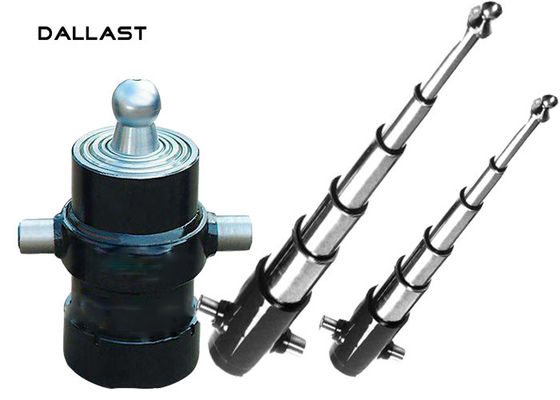

3 4 5 Inch Bore Telescopic Single Acting Hydraulic Cylinder For Sale
We produce hydraulic cylinder over 10 years. Now having all kinds of advanced equipment’s more than 200 sets, such as: hole grinding machine made in American, full-function CNC machine, computer checking platform and so on.
Stainless steel single acting hydraulic cylinder is our superstar production, it is recognized around the world for its good performance.
|HS Code||8412210000||Working pressure||16mpa-23mpa|
|Color||custom||Payment terms||T/T, L/C, West Union|
|Seal||Halite, SKF, NOK, Guaranties, Parker|
|Coating||all tubes are chrome plated|
|tube Material||stainless steel|
|Application||Dump truck, tipper, trailer, tractors and another dump vehicle|
|Delivery time||mass production20- 45 days after down payment|
|Certification||ISO9001:2008 and TS 16949:2009|
|Package||Carton or According to Customer's Require|
|Warranty||One year after shipping arrival|
1. Small size, light weight, high strength: Adopting material selection and processing technology of oil cylinder body and piston rod according to the analysis of load frequency strength, fatigue design and welding technology, through ultrasonic flaw detection, Lightweight, high strength, high reliability.
2. sealing system: The company's unique sealing system design to prevent soil sand dust, reduce oil leakage, get a good piston rod film.
3. Cylinder: According to the appropriate strength, the company made the right size of the cylinder's inner surface, after rolling processing, reaching a good roughness and surface hardness, improved wear resistance.
Packaging & Shipping
WE EXPORT SHIPPING FROM QINGDAO PORT. Goods are packed suitable for transportation with pallets/carton/wooden box or customization. and will be delivered on time.
after sale service
1. 24 hours technical support through email
2. Goods will be delivered safely on time
3. One-year guarantee after destination port arrival
4. Life long time follow up service
When the pressure oil from the rod into the cavity, effective area of the piston cylinder extends, line to the end, effective area of the piston of the cylinder to lend, telescopic hydraulic out of order is from large to small in turn out, get a long working stroke, extended cylinder effective area is smaller, faster out, therefore, extended speed is slow and fast, the corresponding hydraulic thrust from large to small, this thrust, speed change law, is suitable for variety of automatic loading and unloading machinery on the thrust and speed requirements, in the back of the order is generally in order to retract, axial length of the retracted shorter, less occupied space, compact structure, commonly used in construction machinery and other walking machinery, such as cranes, dump truck and other hydraulic systems
