|Place of Origin:||Shandong, China|
|Certification:||Gs, RoHS, Ce, ISO9001|
|Minimum Order Quantity:||1 Piece|
|Packaging Details:||Plywood Box or Pallet or as your requirements|
|Delivery Time:||15-25 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||1 Piece Per Year|
|Material:||Stainless Steel||Delivery Time:||15-25 Days|
|Origin:||Shandong, China||Work Temperature:||Normal Temperature|
|Color:||Any Color||HS Code:||8412210000|

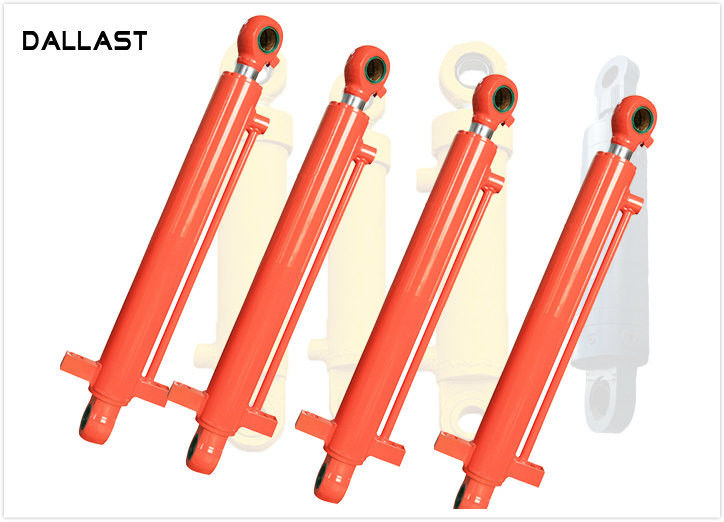

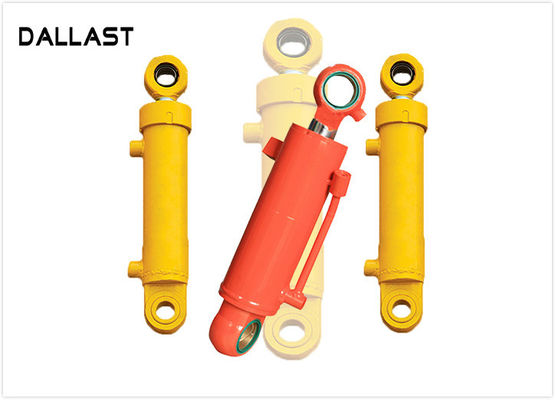

Double Acting Chrome Hydraulic Cylinder for Agricultural Farm Truck

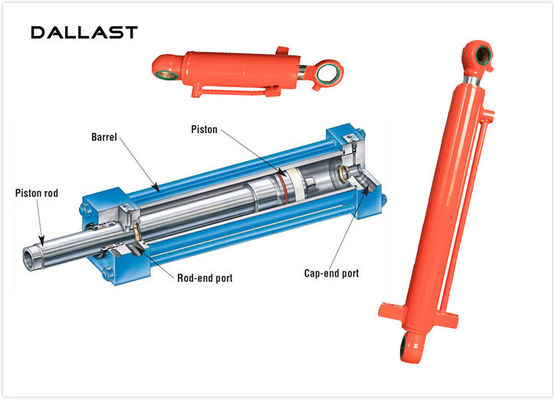

The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.
Three advantages for hydraulic cylinder:
1.Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
2.More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
Dallast Technology Co., Ltd is ISO 9001 Certified for Design and Manufacturing of Hydraulic Cylinders. This certification encompassed with Lean Manufacturing allows us to ensure our products are safe, reliable and of superior quality. Learn more about how we implement Lean Manufacturing here.
Our facility upholds strict cleanliness guidelines at all times. Through a 5S system we maintain a clean and organized environment. This allows us to guarantee your cylinders are produced promptly and efficiently.
Our in-house designers and R&D department will assist you in developing new designs, redesign or troubleshoot your existing cylinder. Using Solidworks software and innovative materials we custom design cylinders that fit your application. Designers are involved in testing 100% of our products before they leave our facility.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact cylinder according to your specification and drawing.
Q: How long is your warranty period?
A: We offer 12 months warranty period after on board.
Q: Could we get small quantity samples?
A: Yes! We understand the quality test is important and we are glad to make the sample for you. The MOQ is 1pcs.
Q: How long is the production time?
A: Generally the production time is 15-25 days.
Q: What is your payment term?
A: For sample payment, generally 100% T/T payment in advance, west union, paypal.
For order payment, generally is 30% T/T in advance, 70% balance before shipment.
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
To get an immediate quotation,please provide us with the following necessary parameters:
1) Bore diameter
2) Piston rod diameter
3) Stroke length
4) Working pressure
5) Mounting method
|Material of cylinder tube||Alloy steel|
|Seal||Kaden,Hallite, Parker,NOK,SKF etc|
|Coating||All tubes are chrome plated|
|Mounting Type||Earring-trunnion, double trunnion, double earring (eye end)|
|Plunger||20#, 45# steel with high frequency quenching|
|Certification||ISO9001:2008 ,SGS, TS16949|
|Package||shrink film, pallet, plywood case and carton box|
|Warranty||One year after shipping arrival|
|Main export market||USA, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites,Singapore|
|Payment terms||T/T, L/C, West Union|
15-25 days after down payment
