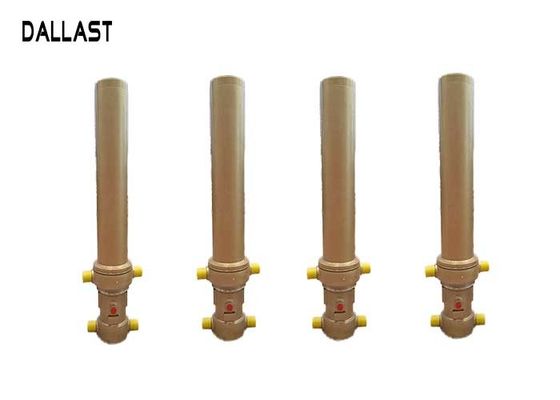

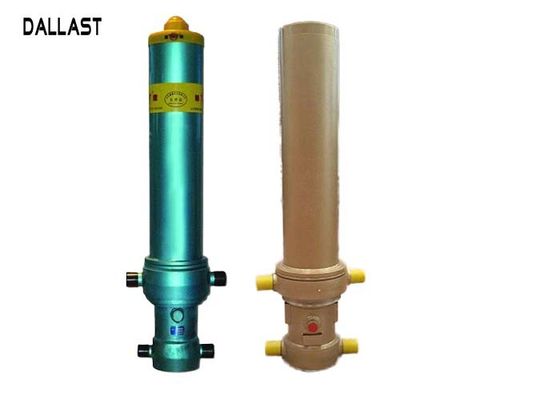

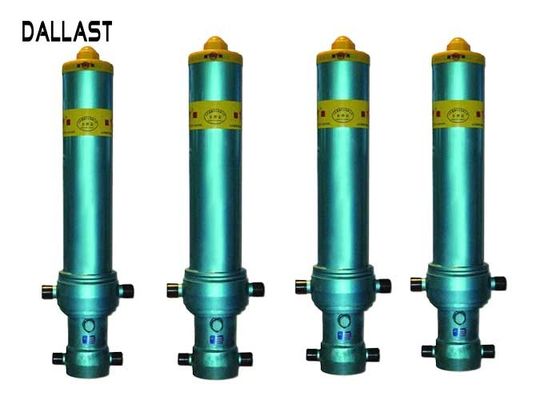

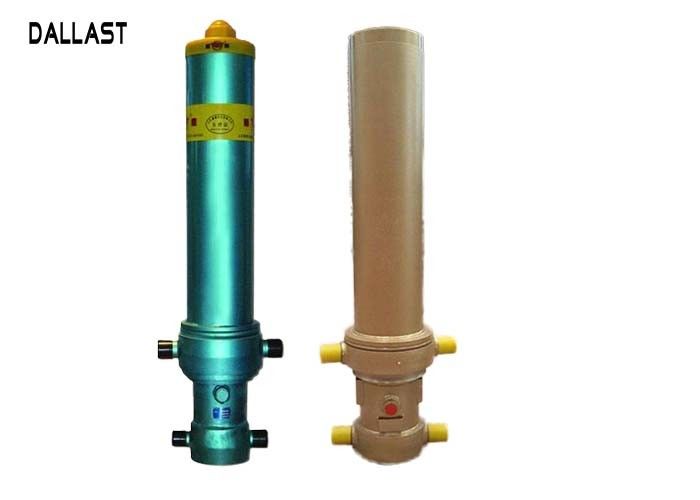

160-350 Bar Multi Stage Hydraulic Cylinder Sleeve for Dump Trailer Lift Front End

160-350 Bar Multi Stage Hydraulic Cylinder Sleeve for Dump Trailer Lift Front End

    • 160-350 Bar Multi Stage Hydraulic Cylinder Sleeve for Dump Trailer Lift Front End
    • 160-350 Bar Multi Stage Hydraulic Cylinder Sleeve for Dump Trailer Lift Front End
    • 160-350 Bar Multi Stage Hydraulic Cylinder Sleeve for Dump Trailer Lift Front End
  • 160-350 Bar Multi Stage Hydraulic Cylinder Sleeve for Dump Trailer Lift Front End

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: 160-350 Bar Temperature: Normal Or High Temperature
    Seal Kit: Nok, Hallite, Parker Etc Structure: Single Acting
    Material: Stainless Steel, Alloy Steel Color: Custom
    High Light:

    multi stage hydraulic ram

    ,

    hollow hydraulic cylinder

    Hydraulic Cylinder Multi Stage Sleeve for Dump Trailer Lift Front End



    Application:

    TG multistage series of single-acting multistage telescopic sleeve hydraulic cylinder, with small size, large stroke, etc., can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.



    Features:

    1. Choice of Mounting Styles, Cross Tube or Trunnion

    2. Hard Chrome Plated Stages

    3. Big lifting force

    4. Higher efficiency

    5. Stronger weather resistance

    6. Better performance



    standard product type

    pressure

    (Bar)

    stroke

    (mm)

    close length

    (mm)

    3TG-E180*4210ZZ 160 4210 343
    4TG-E160*4130ZZ 160 4130 343
    4TG-E160*5150ZZ 160 5150 343
    4TG-E180*4000ZZ 160 4000 425
    4TG-E180*5390ZZ 160 5390 425
    3TG-E180*3850ZZ 160 3850 425
    4TG-E180*5390ZZ 160 5390 425

    If you are interested in our products, contact us and send us the drawings:

    The drawing details are as follows.

    A. The drawing details are as follows.
    Bore size

    Stroke length



    Rod diameter

    Mounting type



    Mounting length

    Paint color requirement



    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting
    5. Operating pressure



    Introduction:
    a. Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation.
    d. Single-acting cylinders transfer force and motion in one direction only.

    e. Acts on the piston to push the piston rod out.

    f. When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement.

    g. Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.

    h. A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.

    i. The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.



    Tips:

    In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.



    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Material:

    Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details
