|Place of Origin:||Shandong China|
|Certification:||GS CE ISO 9001|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Carton or According to Customer's Require|
|Delivery Time:||15-25 days|
|Payment Terms:||T/T, Western Union, D/A, D/P, L/C|
|Supply Ability:||50000 Pieces/Per year|
|Standard:||Standard||Painting:||Anti Rust Painting|
|Maximum Stroke:||Requirements||Shaft Diameter:||20-400mm|
|Seals:||Hallite, NOK||Acting Way:||Double Acting|

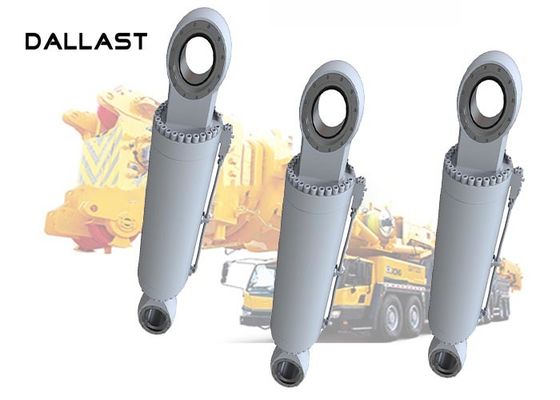

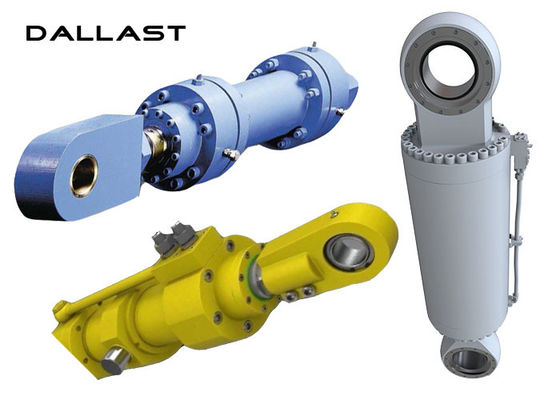

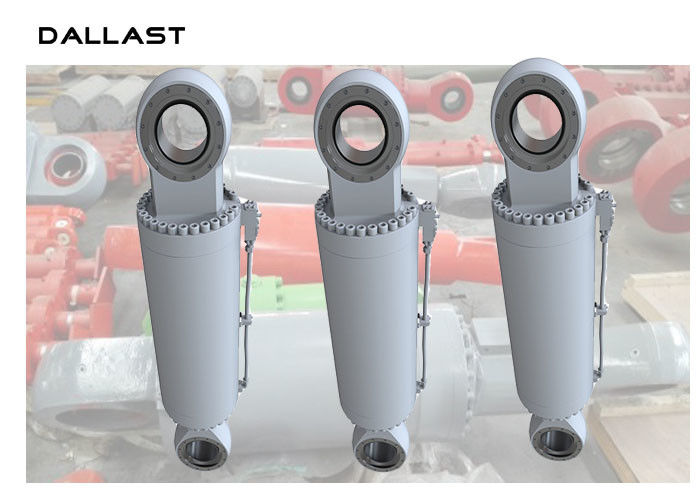

Double Acting Heavy Duty Chrome Flange Hydraulic Piston Cylinder
We are involved in manufacturing, wholesaling and exporting an eminence range of Heavy Duty Flange Hydraulic Cylinder, which is fabricated at par with global principles from well class basic material. We also accept customized Heavy Duty Hydraulic Cylinder as per specific requirements and different spares are also available with us. Furthermore, the wide quality tests also make sure their improved durability and rigid construction. These cylinders are also available at economical costs.
|Bore||40 – 1000 mm (1 1/2 – 40 inch)|
|Rod||12 – 500 mm (1/2 – 20 inch)Rod should be hard chromed to minimum depth of 25 microns and polished to 0.15 um Ra|
|Plate||Cr, Ni or Ceramic|
|Stroke||Max 15 500 mm (610 inch)|
|Design Pressure||Max 700 bar (10150 PSI)|
|Weight||Max 60 tons|
|Seals||PARKER (USA), MERKEL (Germany) or NOK (Japan)|
|Bearing||LONGXI (China) or SKF|
|Painting||follow with customer requirement or 3-coat marine painting|
|Certificate||DNV, ABS, Lloyds, BV, GL, KR, NK, RINA, RS and CCS|
|Material||Carbon steel, Alloy steel, Stainless steel|
Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced.
Processing and inspection:
1. Cylinder Tube
According to the work pressure,work temperature,work situation and other special requirements,
different cylinder tube will be choosed.
1.1 Cylinder Tube:cold drawn precision seamless steel tube,hot rolled seamless steel tube,forged
1.2 Tube Material: 27SiMn,etc.
1.3 Surface Roughness:R0.16-0.32μm
1.4 Inside Chromating:If necessary,inside tube will be chromated.
2. Piston Rod
2.1 Rod Material:35#,SAE1045(45#),35CrMo,42CrMo4,etc.
2.1 Technical Treatment: Quenched and tempered.1.5-1mm,or 1.03mm per millimetre.
According to customers' requirements and work condition,we will choose suitable seal kits,
including:Hallite,NOK,SKF,Parker,Merker,Trelleborg,China made,Taiwan made.We will supply you suitable seal kits to ensure hydraulic cylinders a long lifetime,easy maintenance and simple
1. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
