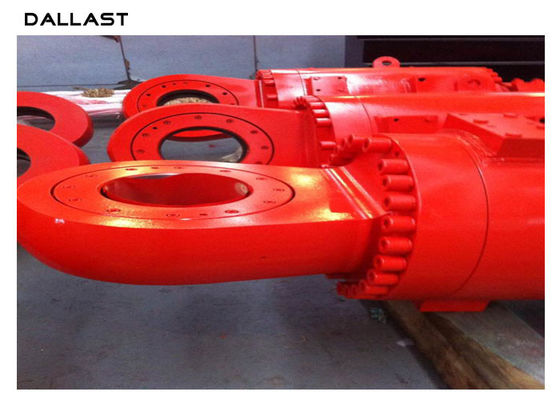

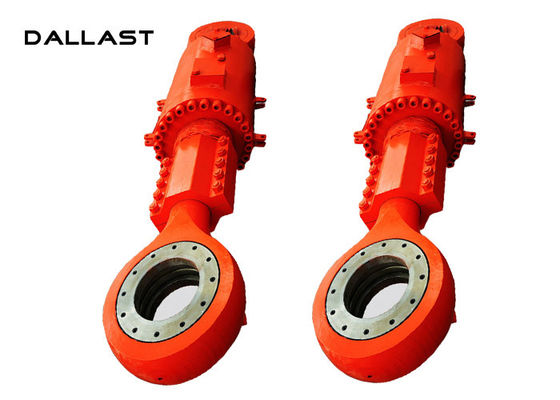

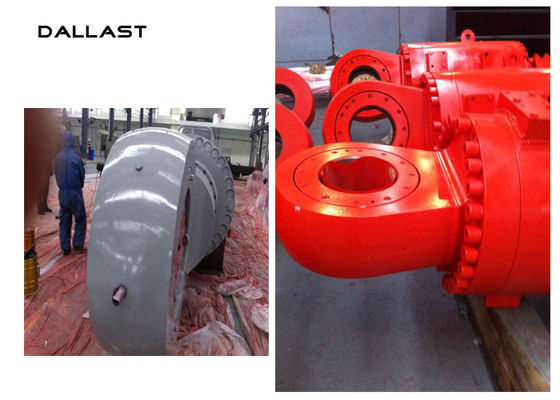

High Pressure Flange Hydraulic Cylinder OEM Standard Double Acting

High Pressure Flange Hydraulic Cylinder OEM Standard Double Acting

    • High Pressure Flange Hydraulic Cylinder OEM Standard Double Acting
    • High Pressure Flange Hydraulic Cylinder OEM Standard Double Acting
    • High Pressure Flange Hydraulic Cylinder OEM Standard Double Acting
  • High Pressure Flange Hydraulic Cylinder OEM Standard Double Acting

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Structure: General Cylinder Factory Visit: Available
    Service: After-sale Service Place Of Origin: Shandong
    Piston: High Grade And Precisely Machined Ductile Iron Working Temperature: -30℃-80℃
    High Light:

    heavy duty hydraulic rams

    ,

    horizontal hydraulic cylinder

    OEM Standard High Pressure Double Acting Flange Hydraulic Cylinder



    We can design and produce most kind hydraulic cylinder. Single acting, double acting hydraulic cylinder. Big size and little size hydraulic cylinder.3-6 stages Telescopic hydraulic cylinder.

    Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.

    Item Hydraulic Cylinder For Press
    Material Steel
    Mounting Type Front flange
    Power Hydraulic
    Hardness HRC40-50
    Chrome Thickness 0.05mm
    Stroke 1650mm
    Shaft Diameter 40 - 500mm
    W.P. 30Mpa
    Structure Piston cylinder
    Certificate ISO 9001:2008, CE
    Packing And Delivery 1 - 20“GP
    Application Construction, metallurgical, mining, agricultural, forestry machinery, etc.



    Bore: 40 – 1000 mm (1 1/2 – 40 inch)

    Rod: 12 – 500 mm (1/2 – 20 inch)

    Rod should be hard chromed to minimum depth of 25 microns and polished to 0.15 um Ra

    Plate: Cr, Ni or Ceramic

    Stroke: Max 15 500 mm (610 inch)

    Design Pressure: Max 700 bar (10150 PSI)

    Weight: Max 60 tons

    Valves: SUN (USA)

    Seals: PARKER (USA), MERKEL (Germany) or NOK (Japan)

    Bearing: LONGXI (China) or SKF

    Painting: follow with customer requirement or 3-coat marine painting

    Certificate: DNV, ABS, Lloyds, BV, GL, KR, NK, RINA, RS and CCS

    Material: Carbon steel, Alloy steel, Stainless steel

    Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced.



    A. Inspection and Testing
    a. We have professional quality control department,every step from raw material to finished product is in the same factory,each procedure will be tested by professional inspector.
    b. Before hydraulic cylinder is assemblied, every spare parts would be measured and cleaned. After hydraulic cylinder is assemblied, pressure test would be carried out one by one. We ensure the testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic cylinder must be tested without any leakage.





    Delivery Detail:

    After payment, depend on consultation



    1. usually within 10 days delivery after payment



    1-2days classify your parts,



    1-3 days making the wooden boxes or carton and packaging, different parts have different package,



    1-2days check your parts again to be sure your correct parts when you get it,



    1-2days delivery your parts on the way to you.



    2. huge demand 20-25days delivery after payment



    3-5days to produce the parts for you the next as before, with 10 days to delivery



    FAQ:



    Q1. You are trading company or manufacturer?

    ----- We are manufacturer, major in hydraulic cylinders for 10 years OEM.



    Q2. Can I order samples for testing?

    ----- Of course, our quality will satisfy you.



    Q3. Can you accept OEM or ODM?

    ----- Of course, any kind and color can be provided according to your requirements.



    Q4. Have you ever exported to foreign countries?

    ----- Yes
