|Place of Origin:||China|
|Brand Name:||DALLAST or on request|
|Certification:||GS, RoHS, CE, ISO9001|
|Minimum Order Quantity:||1 pieces|
|Packaging Details:||wooden case, carton box|
|Delivery Time:||20-30 work days or on request|
|Payment Terms:||T/T, Western Union, D/P, D/A, L/C|
|Supply Ability:||50000 pieces|
|Structure:||Double Acting Flange||Stroke:||500-1500mm|
|Pressure:||100-350 Bar||Temperature:||Normal Or High Temperature|
|Colour:||Custom||Application:||Heavy Duty & Industrial|

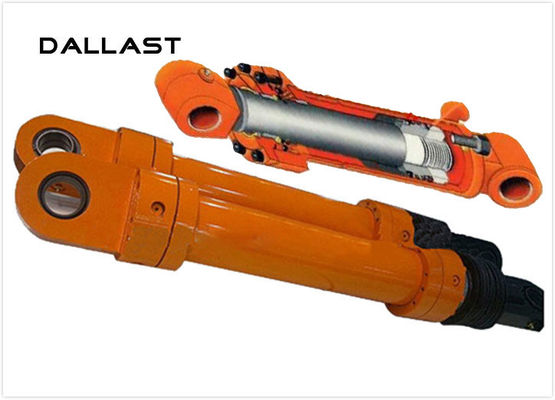

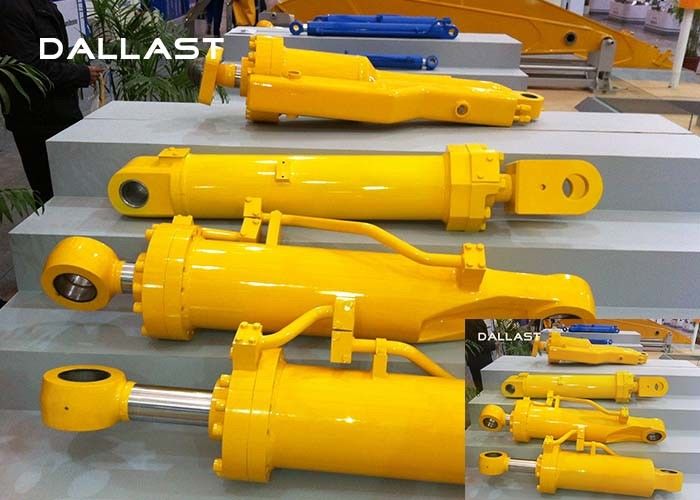

Double Acting Flange Hydraulic Cylinder Shaft Hydraulic Pressure with Piston
They are appropriate for heavy duty & industrial applications.
The ultimate in strength is achieved by this design. Highly recommended for applications where high shock loads and internal pressure spikes can be expected. Flange profile can be square, rectangular, round or even an irregular shape if required.
1. Available in diameters from 25 mm to 320 mm.
2. With any stroke length and a wide range of fixing elements.
3. They are appropriate for heavy duty applications.
4. Many of these sizes are available for immediate delivery.
5. The operating temperature (oil and ambient) is -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen.
6. Rigid welded construction, high tensile welded steel end mounts, threaded gland and quality seals allow industrial cylinders to work in harsh conditions.

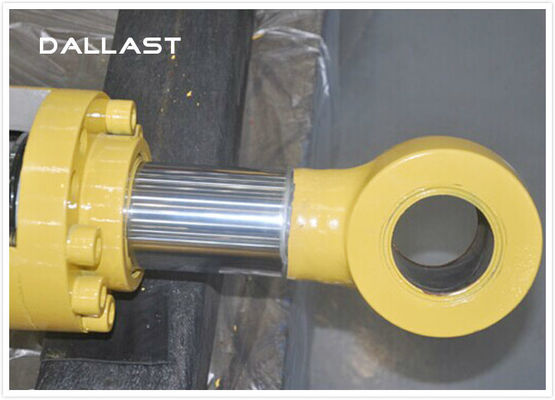

7. Rod end connections.
8. Various bearing accessories are available including spherical bearings.
Prominent & Leading Manufacturer from Shandong China, we offer hydraulic cylinder, double acting & single acting hydraulic cylinders, multistage hydraulic cylinders and telescopic hydraulic cylinder etc.
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
Do you need special cylinders?
Our technicians will help you to design them and we will manufacture them according to your requirements.
We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings.
|A. The drawing details are as follows.|
Paint color requirement
B. The product application description details
|1. Type of machine(loader, steer loader, excavator, and etc.)|
2. Type of function(hoist, swing, steering, and etc.)
3. Type of structure(piston, telescopic)
|4. Single or double acting|
|5. Operating pressure|
