Place of Origin: | Shandong, China |
Brand Name: | Dallast |
Certification: | Gs, RoHS, Ce, ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plywood Box or Pallet or as your requirements |
Delivery Time: | 15-25 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1 Piece Per Year |
Material: | Stainless Steel | Seals: | Parker, Merkel, Hallite |
---|---|---|---|
HS Code: | 8412210000 | Standard: | Standard, Nonstandard |
Delivery Time: | 15-25 Days | Available Temperature: | -40℃ To 80℃ |
High Light: | double acting ram cylinder,dual action hydraulic ram |
Double Acting Custom Dump Truck Tipper Truck Hydraulic Cylinder
Double Acting:
Double Acting Hydraulic Cylinder,High Quality welded hydraulic cylinders series.Professional and thorough analysis and design to all kinds of oil cylinder through High-tech means
B.Unique production process and management methods
C.Imported cushion,sealing element,oil pipe and other components
D.Holds Many Patents,High quality, high reliability, high service life.
Bore:Φ63.5mm
Rod:Φ31.75mm
Stroke:92mm
Pressure:3000PSI
Attention:
1. We have special departments to ensure that no strict quality control any quality problem before delivery.
2. 2.Carefully check goods size table and product specifications. Please check detail with customer service before buying .
3. 3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.
How Double Acting Hydraulic Cylinders Work and Their Uses:
With double acting hydraulic cylinders, the fluid acts on both sides of the piston, alternating between each side. They can be attached to external devices by using a gland to prevent fluid escape. Double acting cylinders have two ends that are supplied with hydraulic fluid, which is used to retract and extend the piston.
Cylinder and cylinder of the advantages and disadvantages:
1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0 Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer with Exporting License.
Q2: How long have you been in Hydraulic Cylinder industry?
A2: Our factory is built in year 2002 .
Q3: How long is your warranty period?
A3: We offer 12 months warranty period after on board.
Q4: How long does it take to process orders?
A4: It usually takes 15-25 days to process. We don’t have stock.
Attention:
1. We have special departments to ensure that no strict quality control any quality problem before delivery.
2. Carefully check goods size table and product specifications. Please check detail with customer service before buying
3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.
Parameter:
Stroke: | 50mm to 11000mm |
Bore: | 40mm to 1000mm ( 1 ½’’ – 40’’) |
Shaft: | 12mm to 500mm ( ½’’ -20’’) |
Work pressure: | 16Mpa to 62Mpa (2250 PSI – 10150 PSI) |
Seal: | Hallite, Parker, Merkel, DingZing, etc. |
Paint: | Red, Grey, Yellow, Black, etc. |
Material: | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc. |
Certificate: | Gs, RoHS, Ce, ISO9001 |

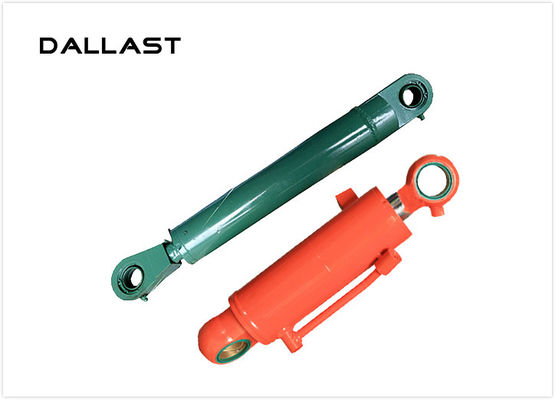

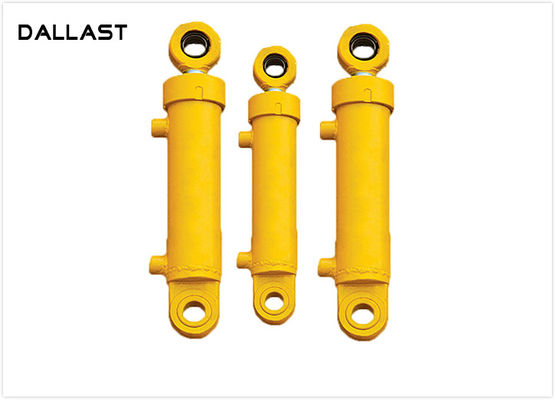

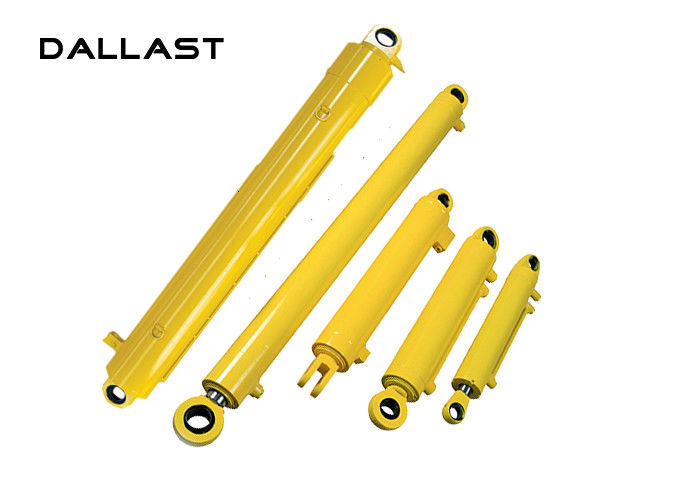

Product Show:
