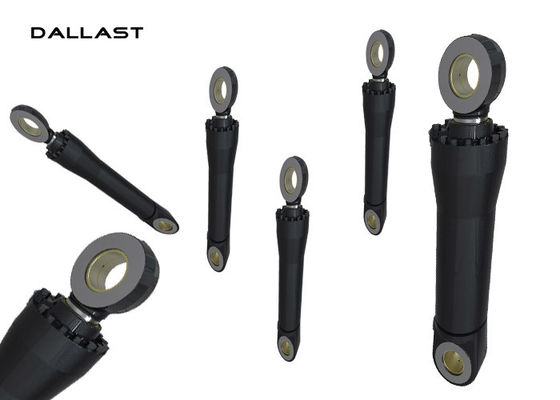

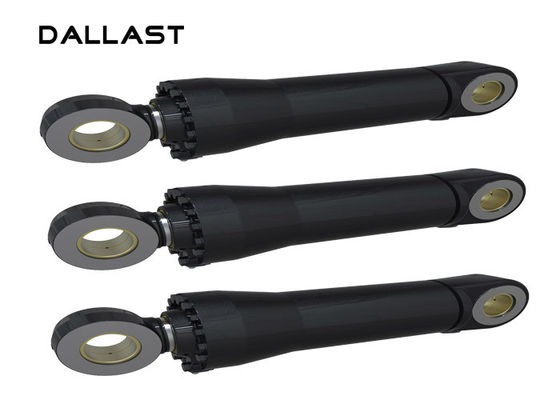

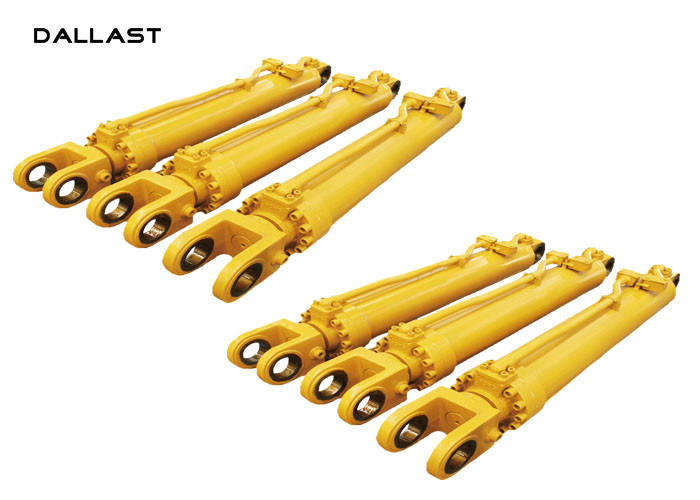

High Pressure Heavy Duty Flange Double Acting Hydraulic Cylinder

High Pressure Heavy Duty Flange Double Acting Hydraulic Cylinder

A double-acting cylinder is used in applications where:

Even with applications where gravity (or weight) can assist retraction, hydraulic pressure is often applied to double-acting cylinders to control acceleration, change the rate of travel and cushion the stoppage. Travel in one direction always differs from travel in the other, all things being equal; the push action requires more force and is slower, but more work output is generated. The pulling action is faster, but less work output is created.

Double-acting cylinders also act as a reservoir, because fluid flows under pressure to the piston side to extend the hydraulic cylinder. On the return stroke, the fluid flows under pressure to the rod side of the cylinder to retract it. The cylinder is therefore holding most of the fluid, so if you have a limited amount of space in your application, e.g. with DC hydraulic power units, you can effectively use a much smaller reservoir or tank to hold the oil.

Product description

Bore of hydraulic cylinder: 40mm-1000mm (1 1/2 inch-40 inch)

Diameter of piston rod: 12mm-500mm (1/2 inch-20 inch)

Stroke of hydraulic cylinder: max 15500mm (610 inch)

Working pressure of hydraulic cylinder: 10Mpa-70Mpa

Brand of seal kits: PARKER (USA) HALLITE (England) NOK (Japan)

Materials of hydraulic cylinder tube: 27SiMn, 1020# steel, 1045# steel, 16Mn(Q345B)

Surface roughness of tube: R 0.16-0.32μm

Materials of piston rod: 42CrMo, 1045# steel

Technical treatment of piston rod: quenched and tempered, chromate

Painting: follow with customer requirement

(We can make the hydraulic cylinders according to the client's requirements or drawings, and you can choose the color of the hydraulic cylinder that you need)

Quality control

· All specification is designed by professional engineer

· All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.

· All material is processed by skilled workers and advanced CNC lathe

· All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose

· Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely

· One year warranty and life long time follow up service is offered to solve any problems you met when use our products

Exclusion clause:

1. This warranty does not cover & DALLAST shall have no responsibility for:

2. Troubleshooting, diagnostic, removal, or reinstallation labor charges;

3. Freight charges for either defective parts or new or repaired parts unless prior written approval is obtained from DALLAST;

4. Claims for loss of time, inconvenience, loss of use, profits or other consequential damages;

5. Corrosion unless the material is found to be out of specification;

6. Failure due to contamination introduced to the cylinder;

7. Paint unless out of specification
